Aluminium Butterfly Valve Lever Operated

Name: Aluminium Butterfly Valve Lever Operated
Brand: Prestige Valves

Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.

Size Range: 40mm to 600mm. Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Aluminium Butterfly Valve Lever Operated catalogue specifications
Design Std	API 609/IS 13095/ BS 5155.
Size Range	40mm to 600mm.
Body	Aluminium.
Disc	SGI/ WCB/ CF8/ CF8M/ AB2/ NAB.
Seat	EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded).
Pressure Rating	PN10/ PN16.
Operation	Lever.
Note	Also Available in Gear.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 4.

Read the original catalogue specification text

Source title: Aluminium Butterfly Valve Lever Opd

Design Std: API 609/IS 13095/ BS 5155. Size Range : 40mm to 600mm. Body: Aluminium. Disc: SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. Seat: EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded). Pressure Rating: PN10/ PN16. Operation: Lever. Note: Also Available in Gear.

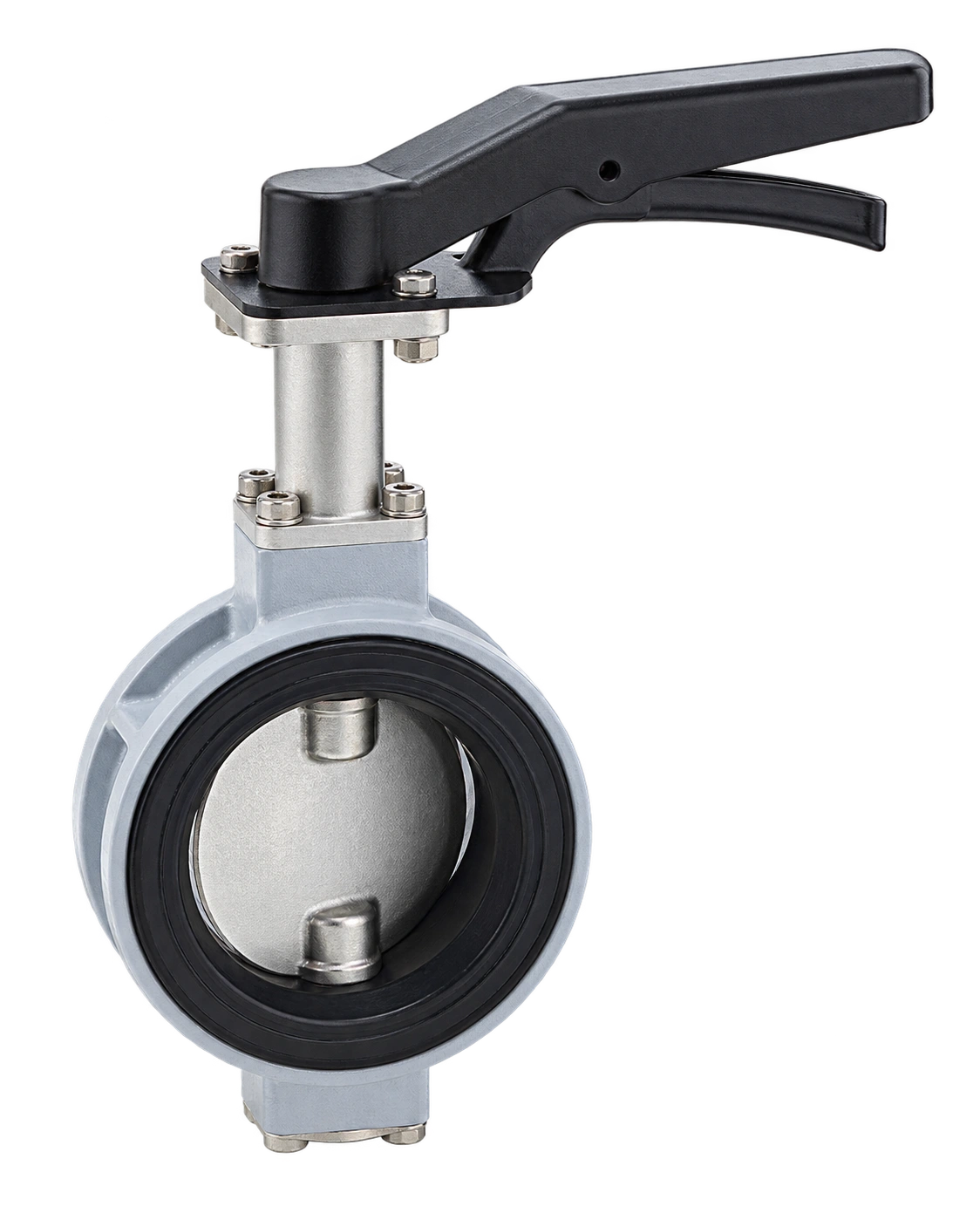

Supplied photographs: Original view 01
