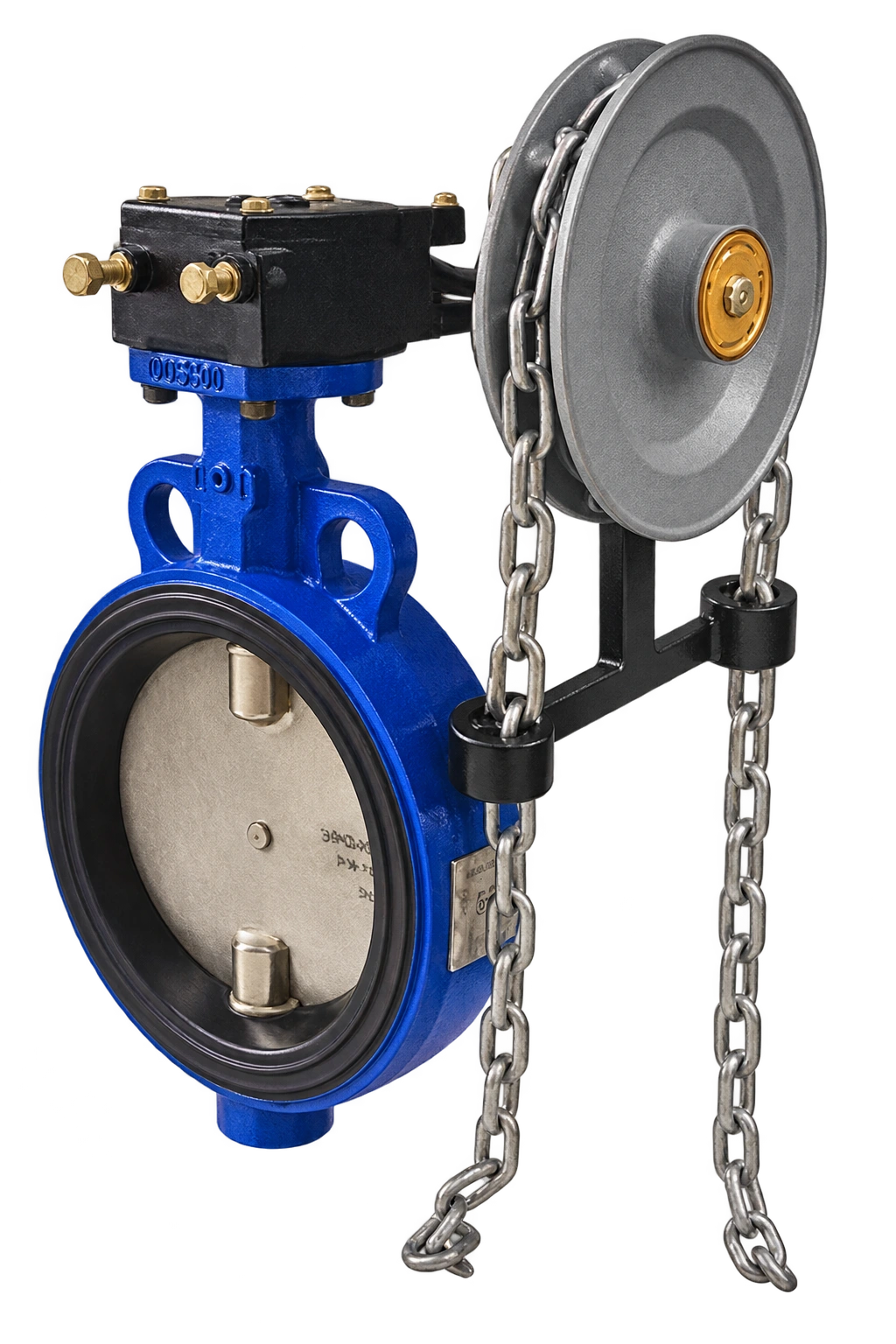

Butterfly Valve with Chain Wheel

Name: Butterfly Valve with Chain Wheel
Brand: Prestige Valves

Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.

Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Butterfly Valve with Chain Wheel catalogue specifications
Design Std	API 609/IS 13095/ BS 5155.
Size Range	25mm to 1200mm.
Body	Aluminium.
Disc	SGI/ WCB/ CF8/ CF8M/ AB2/ NAB.
Seat	EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded).
Pressure Rating	PN10/ PN16.
Operation	Worm Gear.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 5.

Read the original catalogue specification text

Source title: Butterfly Valve with Chain Wheel

Design Std: API 609/IS 13095/ BS 5155. Size Range: 25mm to 1200mm. Body: Aluminium. Disc: SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. Seat: EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded). Pressure Rating: PN10/ PN16. Operation: Worm Gear.

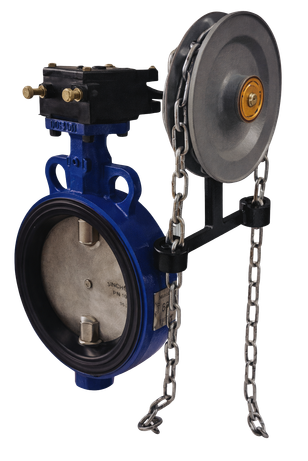

Supplied photographs: Original view 01
