PRESTIGE / PNEUMATIC ACTUATORS

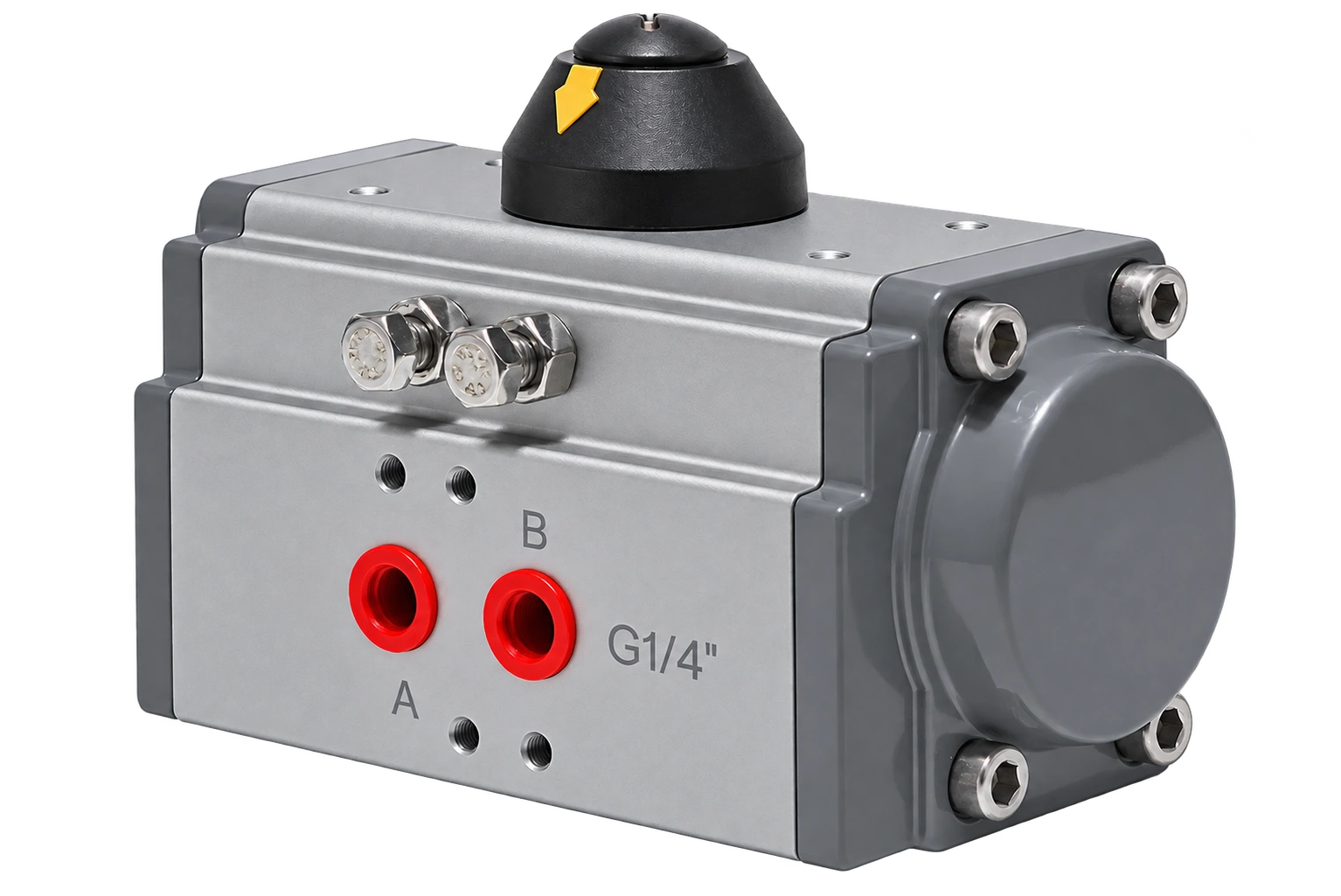

Compact Scotch Type Pneumatic Actuator

Name: Compact Scotch Type Pneumatic Actuator
Brand: Prestige Valves

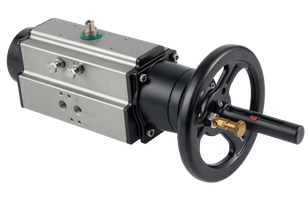

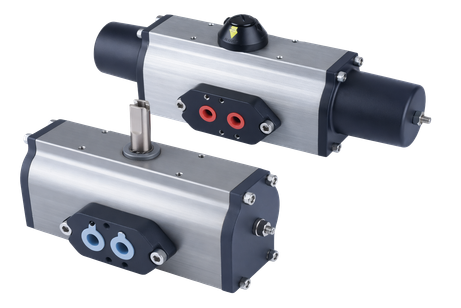

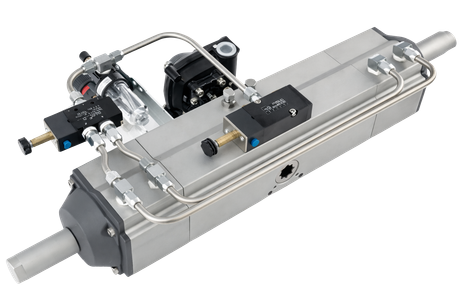

Single and double acting pneumatic actuators, including scotch yoke, stainless steel and manual override options.

Torque: Double Acting: 7.8- 6200NM, Single Acting: 8.2 - 2668 NM. Protection Class: on Request (ATEX (Protection Class II 2GDc).

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Compact Scotch Type Pneumatic Actuator catalogue specifications
Body	Aluminium.
Torque	Double Acting: 7.8- 6200NM, Single Acting: 8.2 - 2668 NM.
Shaft	Steel (Nickel Coated), SS.
Sealing Material	NBR.
Air Supply	2 - 8 Bar.
Protection Class	on Request (ATEX (Protection Class II 2GDc).
Drilling Standard	ISO 5211. Solonied Valve, Limit Switch Connection as per NAMUR Std.
Temperature	-20 DegC - 80 DegC/ -50 DegC - 80 DegC.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 16.

Read the original catalogue specification text

Source title: Compact Scotch Type Pneumatic Actuator

Body: Aluminium. Torque: Double Acting: 7.8- 6200NM, Single Acting: 8.2 - 2668 NM. Shaft: Steel (Nickel Coated), SS. Sealing Material: NBR. Air Supply: 2 - 8 Bar. Protection Class: on Request (ATEX (Protection Class II 2GDc). Drilling Standard: ISO 5211. Solonied Valve, Limit Switch Connection as per NAMUR Std. Temperature: -20 DegC - 80 DegC/ -50 DegC - 80 DegC.

Supplied photographs: Original view 01
