Double Flanged Butterfly Valve Lever Operated

Name: Double Flanged Butterfly Valve Lever Operated
Brand: Prestige Valves

Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.

Size Range: 40mm to 300mm. Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Double Flanged Butterfly Valve Lever Operated catalogue specifications
Design Std	API 609/IS 13095/ BS 5155.
Size Range	40mm to 300mm.
Body	CI/SGI/WCB/CF8/CF8M/ AB2/NAB.
Disc	SGI/ WCB/ CF8/ CF8M/ AB2/ NAB.
Seat	EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Moulded).
Pressure Rating	PN10/ PN16.
Operation	Lever.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 4.

Read the original catalogue specification text

Source title: Double Flanged Butterfly Valve Lever Opd

Design Std: API 609/IS 13095/ BS 5155. Size Range : 40mm to 300mm. Body: CI/SGI/WCB/CF8/CF8M/ AB2/NAB. Disc: SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. Seat: EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Moulded). Pressure Rating: PN10/ PN16. Operation: Lever.

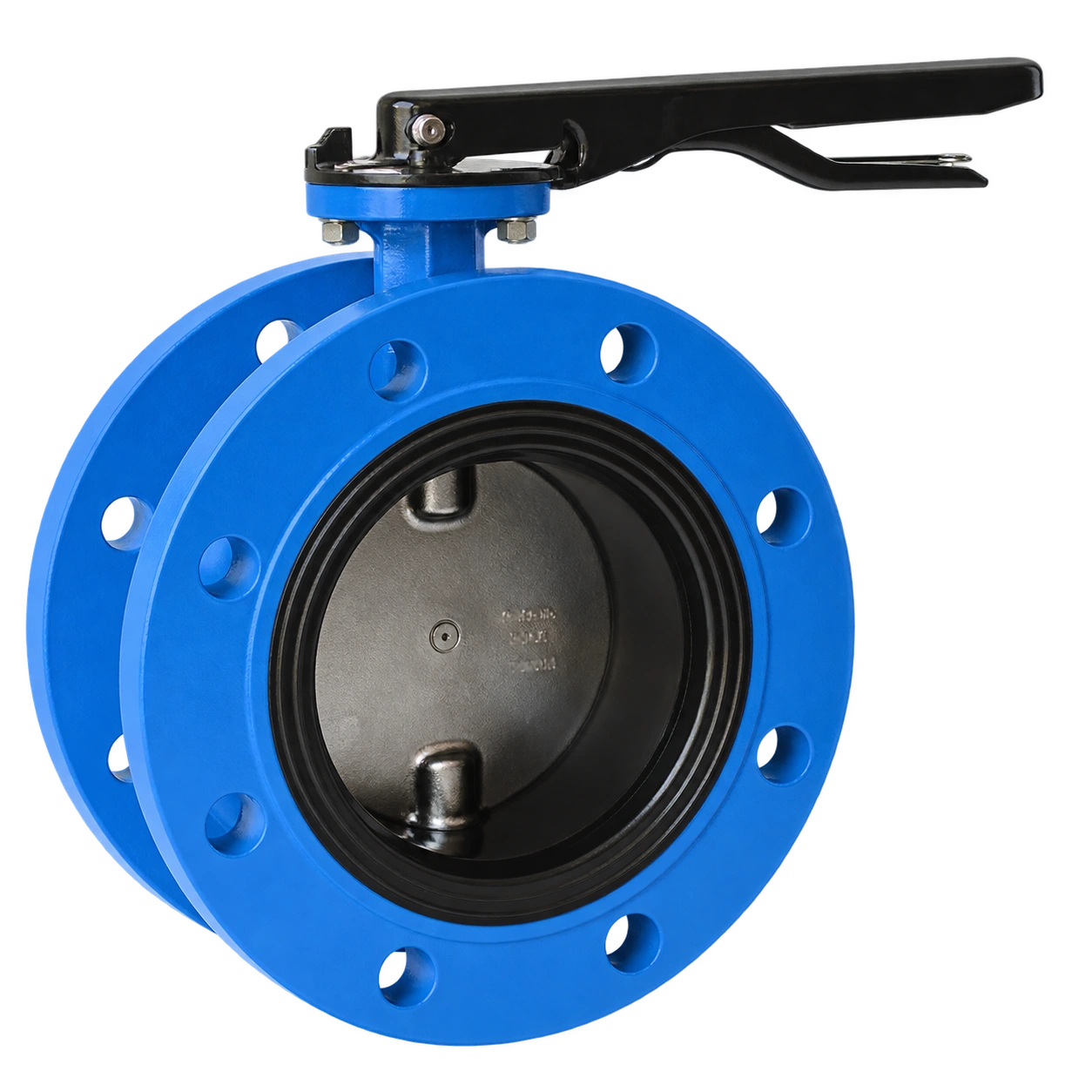

Supplied photographs: Original view 01
