Flap Ash Discharge Valve

Name: Flap Ash Discharge Valve
Brand: Prestige Valves

Customizable blind and goggle valves, dampers and ash discharge valves for steel industry applications.

Size Range: 40mm to 600mm. Operation: Worm Gear/ Electric Actuator/ Pneumatic Actuator.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Flap Ash Discharge Valve catalogue specifications
Design Std	Customisable as per Customer Requirements.
Size Range	40mm to 600mm.
Body	MS IS 2062/ SS304/ SS316.
Disc	MS IS 2062/ SS304/ SS316 (Multi Blades).
Seat	Metal to Metal.
Rating	PN10/ PN16.
Operation	Worm Gear/ Electric Actuator/ Pneumatic Actuator.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 14.

Read the original catalogue specification text

Source title: Flap Ash Discharge Valve

Design Std: Customisable as per Customer Requirements. Size Range: 40mm to 600mm. Body: MS IS 2062/ SS304/ SS316. Disc: MS IS 2062/ SS304/ SS316 (Multi Blades). Seat: Metal to Metal. Rating: PN10/ PN16. Operation: Worm Gear/ Electric Actuator/ Pneumatic Actuator.

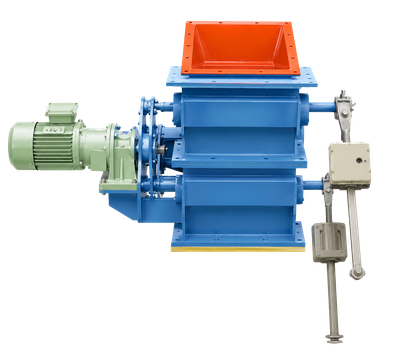

Supplied photographs: Original view 01
