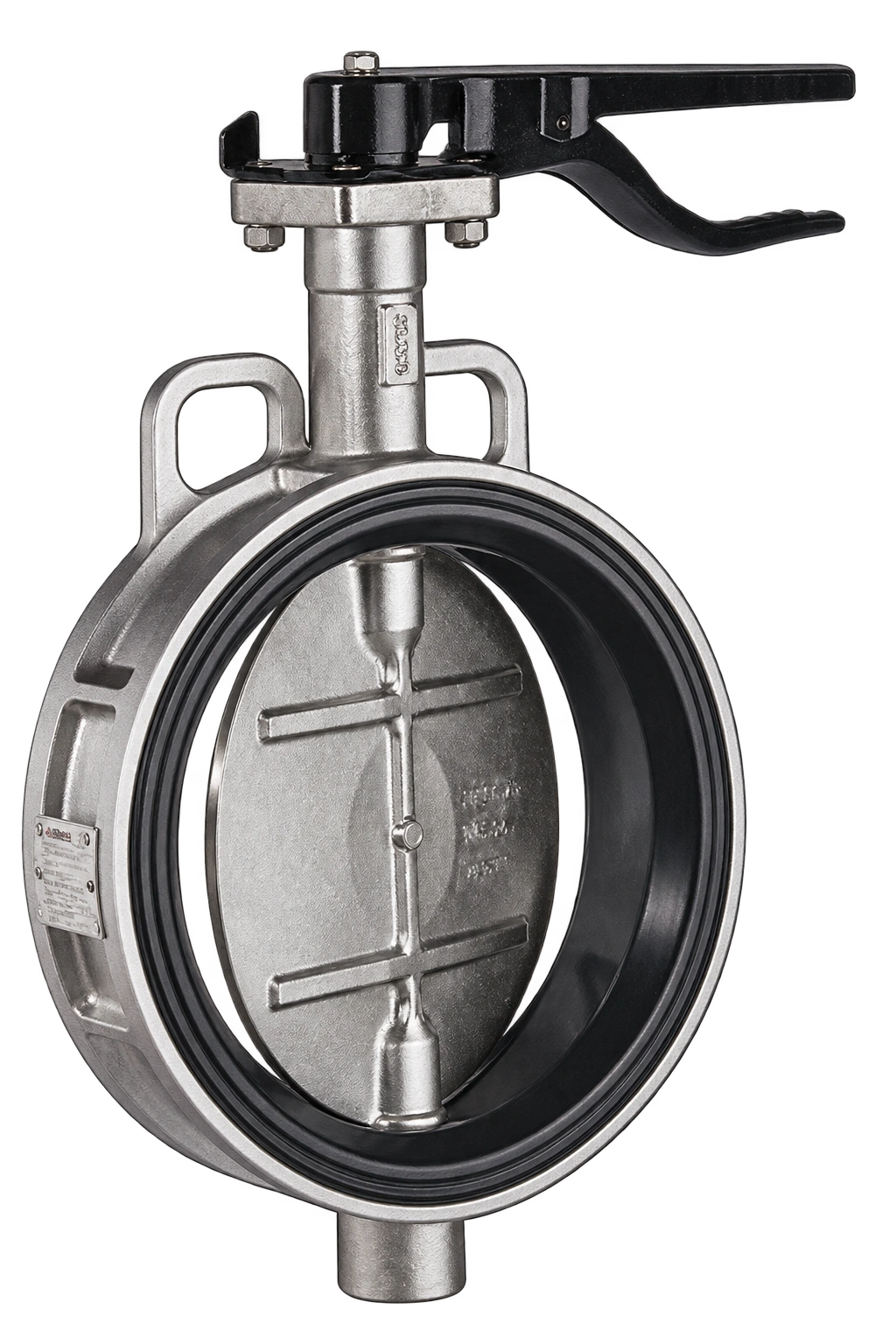

Investment Cast Butterfly Valve
Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.
Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 609/IS 13095/ BS 5155. |
|---|---|
| Size Range | 25mm to 1200mm. |
| Body | CI/ SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. |
| Disc | SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. |
| Seat | EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded). |
| Pressure Rating | PN10/ PN16. |
| Operation | Lever. |
| Note | Also Available in Gear. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 5.
Read the original catalogue specification text
Source title: Investment Casted Butterfly Valve
Design Std: API 609/IS 13095/
BS 5155.
Size Range : 25mm to 1200mm.
Body: CI/ SGI/ WCB/ CF8/ CF8M/
AB2/ NAB.
Disc: SGI/ WCB/ CF8/ CF8M/
AB2/ NAB.
Seat: EPDM/ Nitrile/ Silicon/
Viton/ Hypalon (Replaceble and
Moulded).
Pressure Rating: PN10/ PN16.
Operation: Lever.
Note: Also Available in Gear.

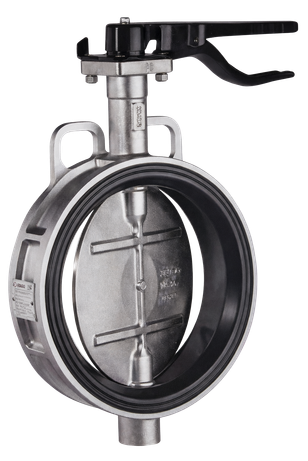

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
