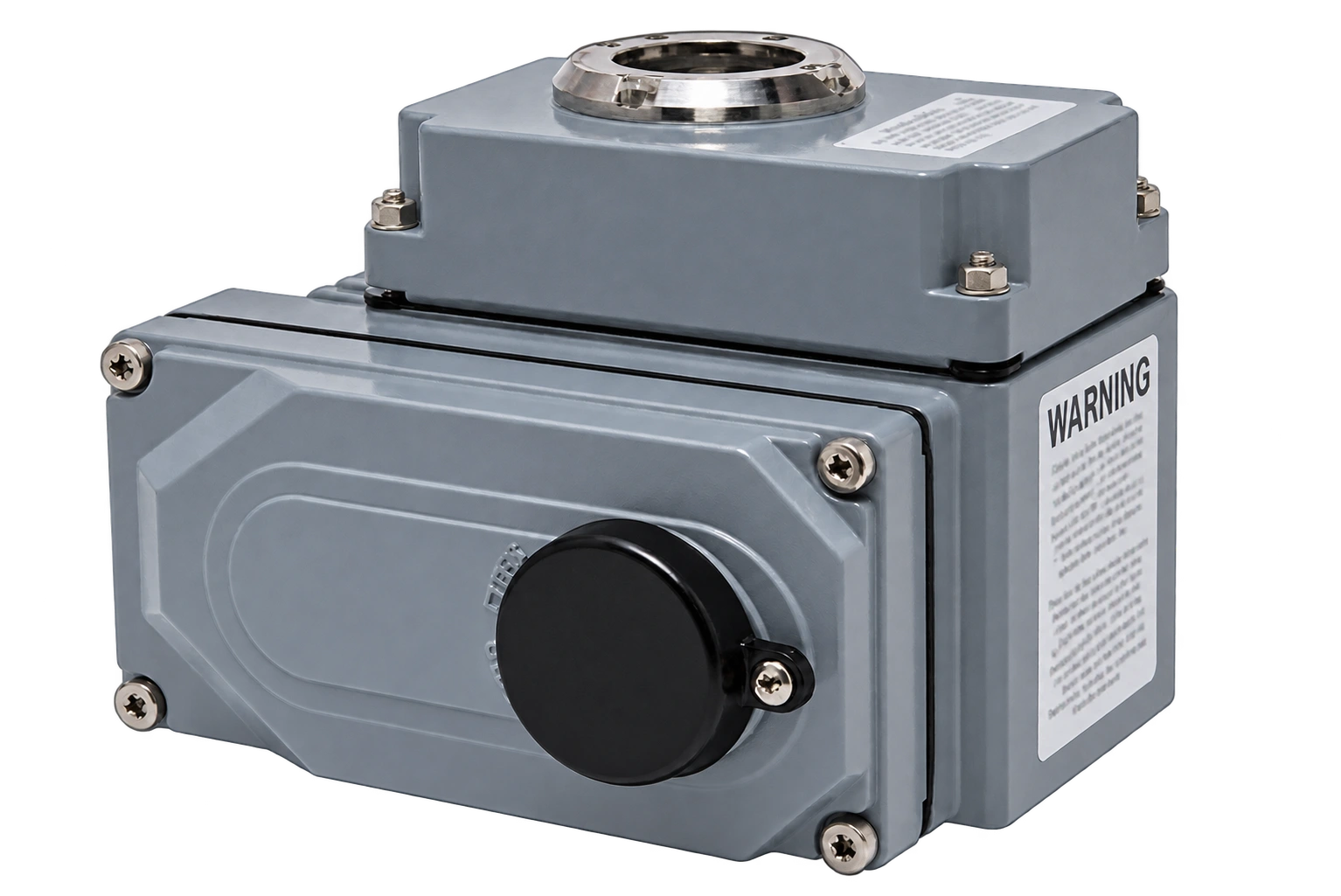

Rotary Electric Actuator (Model H)
Torque: 30NM - 2000 NM. Protection Class: Weather Proof IP67.
PRESTIGE / ELECTRIC ACTUATORSELECTRIC ACTUATORS

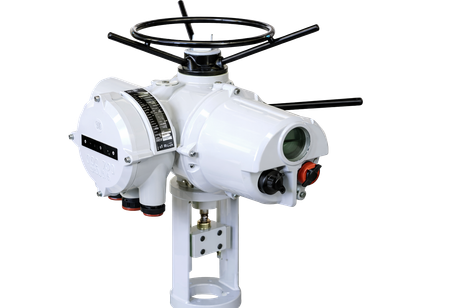

Linear Electrical Actuator
Rotary, multi-turn and linear electric actuators with model-specific control and protection options.
Protection Class: Weather Proof- IP67.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Series | Linear Electric Actuator. |
|---|---|
| Trust Moment | 10 KN - 47KN. |
| Motor Power | 380 C V AC 3Ph, 220 VAC 2Ph, 50/60 Hz +-10%. |
| Temperature | -20 Deg C - 60 Deg C. |
| Flanged Connection | ISO 5211. |
| Control | On Off / Proportional. |
| Accessories | Proportional Card, Limit Switch can be added, 4-20mA output Smart Type Electric Actuators. |
| Protection Class | Weather Proof- IP67. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 17.
Read the original catalogue specification text
Source title: Linear Electrical Actuator
Series: Linear Electric Actuator.
Trust Moment: 10 KN - 47KN.
Motor Power: 380 C V AC 3Ph, 220
VAC 2Ph, 50/60 Hz +-10%.
Temperature: -20 Deg C - 60 Deg C.
Flanged Connection: ISO 5211.
Control: On Off / Proportional.
Accessories: Proportional Card,
Limit Switch can be added, 4-20mA
output Smart Type Electric
Actuators.
Protection Class: Weather Proof-
IP67.
Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
MORE FROM / ELECTRIC ACTUATORS
Explore the family.
Electric ActuatorsPV / 002

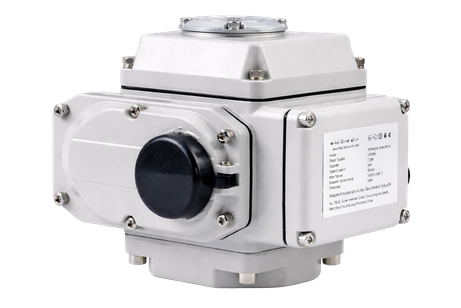

Rotary Electric Actuator (Model A)
Torque: 30NM - 2000 NM. Protection Class: Weather Proof IP68.
Electric ActuatorsPV / 003

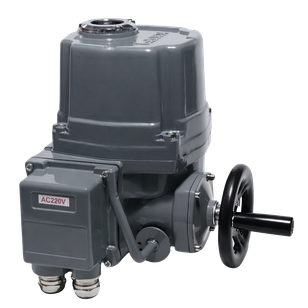

Ex Proof Rotary Electric Actuator (Model M)
