Manual Slide Type Blind Valve

Name: Manual Slide Type Blind Valve
Brand: Prestige Valves

Customizable blind and goggle valves, dampers and ash discharge valves for steel industry applications.

Size Range: 150mm to 600mm. Pressure Rating: PN2.5/ PN6.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Manual Slide Type Blind Valve catalogue specifications
Design Std	Customisable as per customer Requirement.
Size Range	150mm to 600mm.
Body	MS IS 2062.
Disc	MS IS 2062/ SS304/ SS316.
Seat	Silicon/ PTFE. (Replaceble).
Accessories	SS304 Bellow.
Pressure Rating	PN2.5/ PN6.
Operation	Manually.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 13.

Read the original catalogue specification text

Source title: Manual Slide Type Blind Valve

Design Std: Customisable as per customer Requirement. Size Range: 150mm to 600mm. Body: MS IS 2062. Disc: MS IS 2062/ SS304/ SS316. Seat: Silicon/ PTFE. (Replaceble). Accessories: SS304 Bellow. Pressure Rating: PN2.5/ PN6. Operation: Manually.

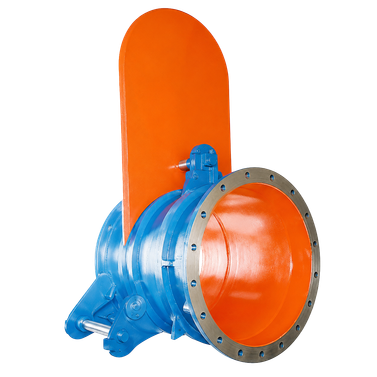

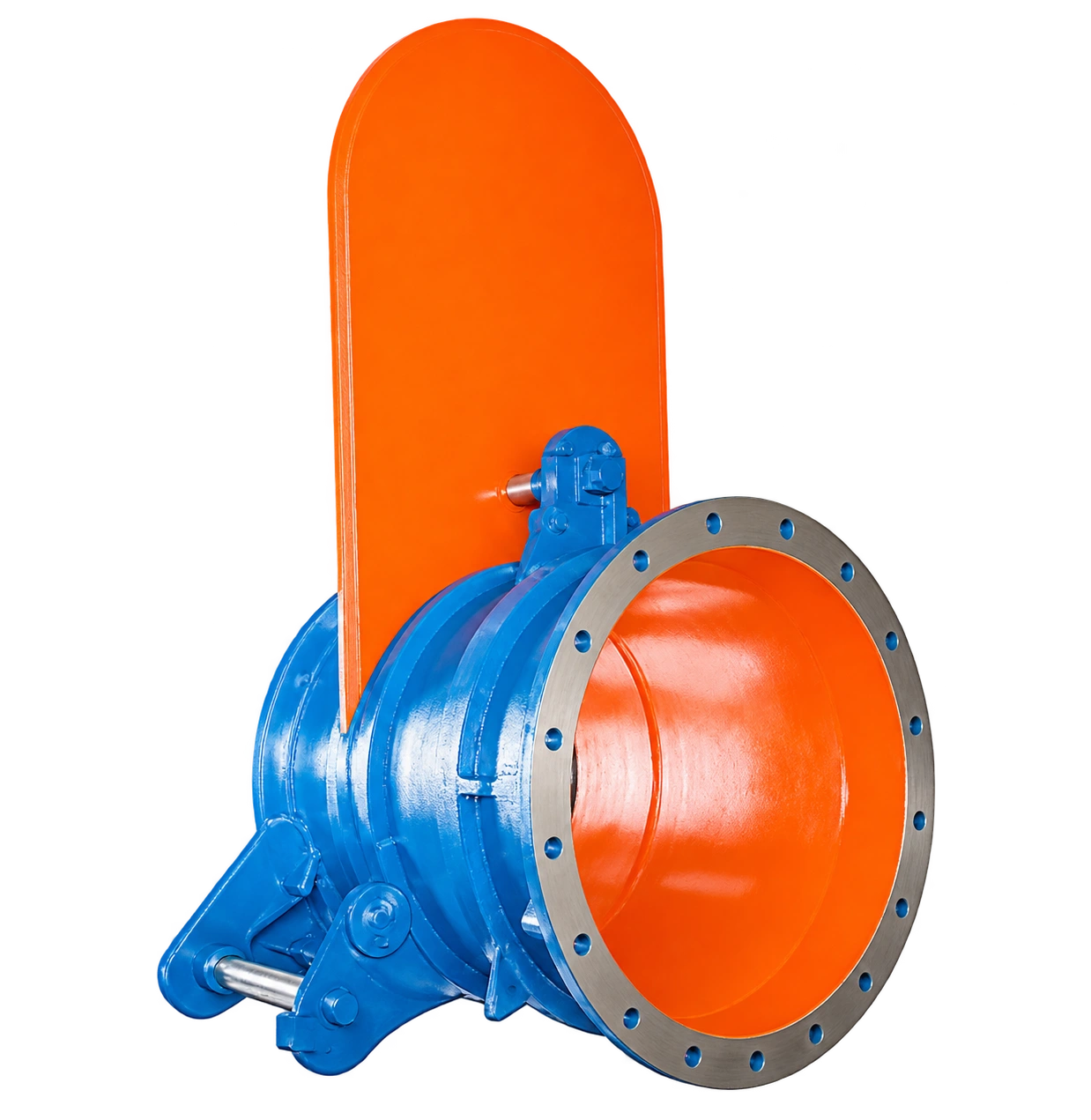

Supplied photographs: Original view 01
