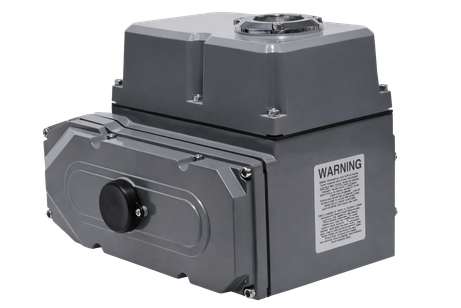

Multi Turn Electric Actuator (Model M)

Name: Multi Turn Electric Actuator (Model M)
Brand: Prestige Valves

Rotary, multi-turn and linear electric actuators with model-specific control and protection options.

Torque: 20NM - 5000 NM. Protection Class: Weather Proof- IP67.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Multi Turn Electric Actuator (Model M) catalogue specifications
Series	Multi Turn Electric Actuator.
Torque	20NM - 5000 NM.
Motor Power	380 C V AC 3Ph, 220 VAC 2Ph, 50/60 Hz +-10%.
Temperature	-20 Deg C - 60 Deg C.
Flanged Connection	ISO 5211.
Control	On Off / Proportional.
Accessories	Proportional Card, Limit Switch can be added, 4-20mA output Smart Type Electric Actuators.
Protection Class	Weather Proof- IP67.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 17.

Read the original catalogue specification text

Source title: Multi Turn Electric Actuator (Model M)

Series: Multi Turn Electric Actuator. Torque: 20NM - 5000 NM. Motor Power: 380 C V AC 3Ph, 220 VAC 2Ph, 50/60 Hz +-10%. Temperature: -20 Deg C - 60 Deg C. Flanged Connection: ISO 5211. Control: On Off / Proportional. Accessories: Proportional Card, Limit Switch can be added, 4-20mA output Smart Type Electric Actuators. Protection Class: Weather Proof- IP67.

Supplied photographs: Original view 01
