PTFE Seated Butterfly Valve Flanged Ends
Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.
Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 609/IS 13095/ BS 5155. |
|---|---|
| Size Range | 25mm to 1200mm. |
| Body | CI/SGI/WCB/CF8/CF8M/ AB2/NAB. |
| Disc | CF8/ CF8M. |
| Seat | PTFE/ RPTFE. |
| Pressure Rating | PN10/ PN16. |
| Operation | Worm Gear. |
| Note | Also Available in Lever, Pneumatic Actuator and Electrical Actuator. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 6.
Read the original catalogue specification text
Source title: PTFE Seated Butterfly Valve Flanged Ends
Design Std: API 609/IS 13095/
BS 5155.
Size Range: 25mm to 1200mm.
Body: CI/SGI/WCB/CF8/CF8M/
AB2/NAB.
Disc: CF8/ CF8M.
Seat: PTFE/ RPTFE.
Pressure Rating: PN10/ PN16.
Operation: Worm Gear.
Note: Also Available in Lever,
Pneumatic Actuator and Electrical
Actuator.

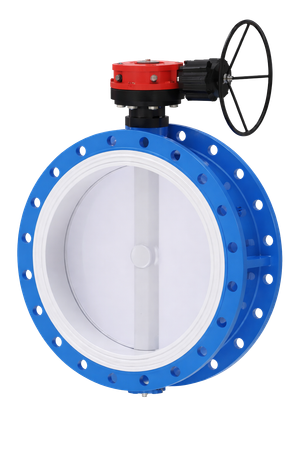

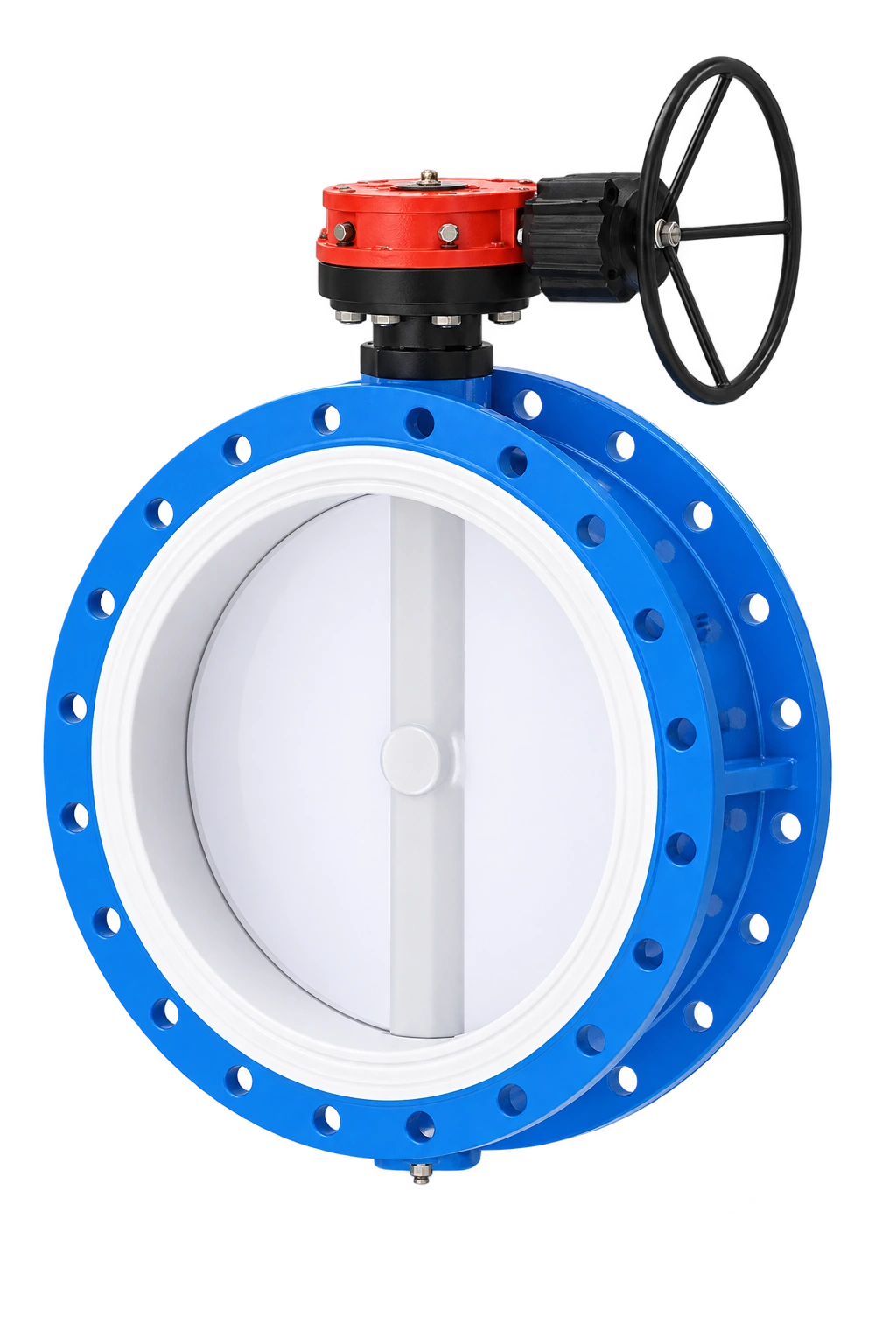

Supplied photographs: Original view 01
