Rotary Electric Actuator

Name: Rotary Electric Actuator
Brand: Prestige Valves

Rotary, multi-turn and linear electric actuators with model-specific control and protection options.

Torque: 20NM - 5000 NM. Protection Class: Weather Proof- IP67, Ecplosive Proof Exd IIC T6.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Rotary Electric Actuator catalogue specifications
Series	Rotary Electric Actuator.
Torque	20NM - 5000 NM.
Motor Power	380 C V AC 3Ph, 220 VAC 2Ph, 50/60 Hz +-10%.
Temperature	-20 Deg C - 60 Deg C.
Flanged Connection	ISO 5211.
Control	On Off / Proportional.
Accessories	Proportional Card, Limit Switch can be added, 4-20mA output Smart Type Electric Actuators.
Protection Class	Weather Proof- IP67, Ecplosive Proof Exd IIC T6.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 17.

Read the original catalogue specification text

Source title: Rotary Electric Actuator

Series: Rotary Electric Actuator. Torque: 20NM - 5000 NM. Motor Power: 380 C V AC 3Ph, 220 VAC 2Ph, 50/60 Hz +-10%. Temperature: -20 Deg C - 60 Deg C. Flanged Connection: ISO 5211. Control: On Off / Proportional. Accessories: Proportional Card, Limit Switch can be added, 4-20mA output Smart Type Electric Actuators. Protection Class: Weather Proof- IP67, Ecplosive Proof Exd IIC T6.

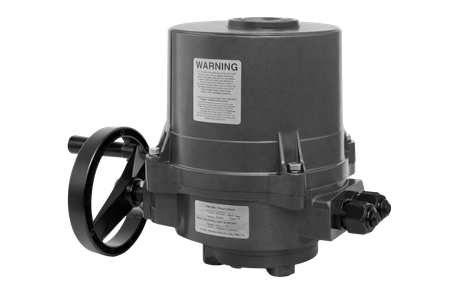

Supplied photographs: Original view 01
