Swing Blind Valve with Electric Actuator Operated

Name: Swing Blind Valve with Electric Actuator Operated
Brand: Prestige Valves

Customizable blind and goggle valves, dampers and ash discharge valves for steel industry applications.

Size Range: 150mm to 1200mm. Pressure Rating: PN2.5/ PN6.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Swing Blind Valve with Electric Actuator Operated catalogue specifications
Design Std	Customisable as per customer Requirement.
Size Range	150mm to 1200mm.
Body	MS IS 2062.
Disc	MS IS 2062/ SS304/ SS316.
Seat	Silicon/ PTFE. (Replaceble).
Accessories	SS304 Bellow.
Pressure Rating	PN2.5/ PN6.
Operations	Electric Actuator with Manual Overide.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 14.

Read the original catalogue specification text

Source title: Swing Blind Valve with Electric Actuator Opnt

Design Std: Customisable as per customer Requirement. Size Range: 150mm to 1200mm. Body: MS IS 2062. Disc: MS IS 2062/ SS304/ SS316. Seat: Silicon/ PTFE. (Replaceble). Accessories: SS304 Bellow. Pressure Rating: PN2.5/ PN6. Operations: Electric Actuator with Manual Overide.

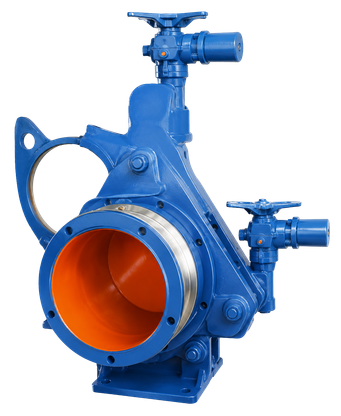

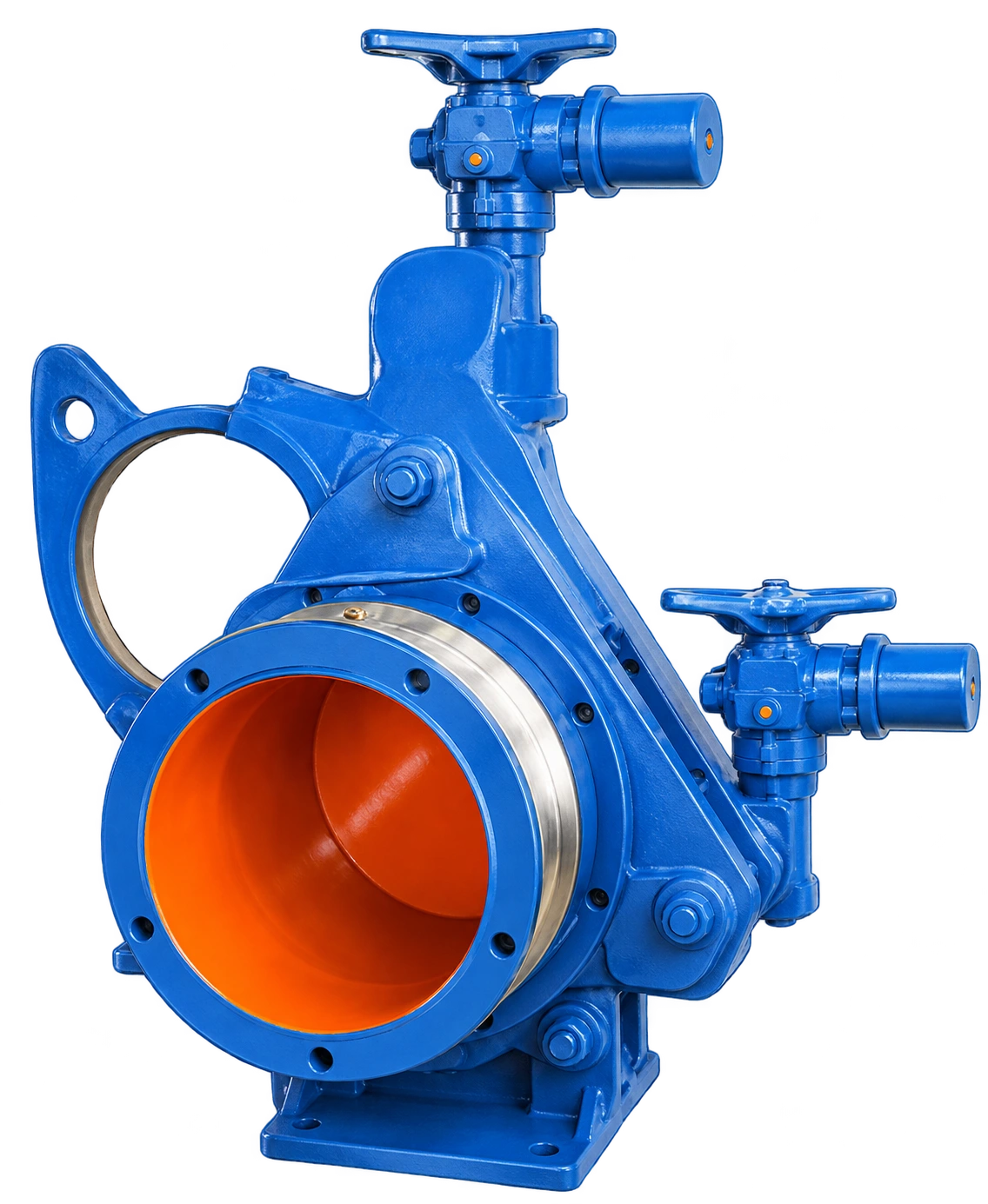

Supplied photographs: Original view 01
