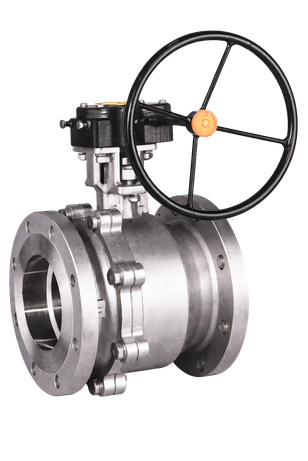

Three Piece Flanged End Ball Valve

Name: Three Piece Flanged End Ball Valve
Brand: Prestige Valves

Flanged, screwed, socket weld, wafer, three-way and trunnion-mounted ball valve configurations.

Size Range: 15mm to 100mm. Pressure Rating: #150 and # 300.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Three Piece Flanged End Ball Valve catalogue specifications
Design Std	IS/ ISO 17292/ BS 5351.
Size Range	15mm to 100mm.
Body	CI/ WCB/ CF8/ CF8M/ Special Metals.
Disc	CF8/ CF8M/ Special Metals.
Seat	PTFE/ RPTFE/ GFT/ CFT/ TFM/ PEEK.
Pressure Rating	#150 and # 300.
Operation	Worm Gear
Note	Also Available in Lever, Pneumatic and Electrical Actuation.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 9.

Read the original catalogue specification text

Source title: Three Piece Flanged End Ball Valve

Design Std: IS/ ISO 17292/ BS 5351. Size Range: 15mm to 100mm. Body: CI/ WCB/ CF8/ CF8M/ Special Metals. Disc: CF8/ CF8M/ Special Metals. Seat: PTFE/ RPTFE/ GFT/ CFT/ TFM/ PEEK. Pressure Rating: #150 and # 300. Operation: Worm Gear Note: Also Available in Lever, Pneumatic and Electrical Actuation.

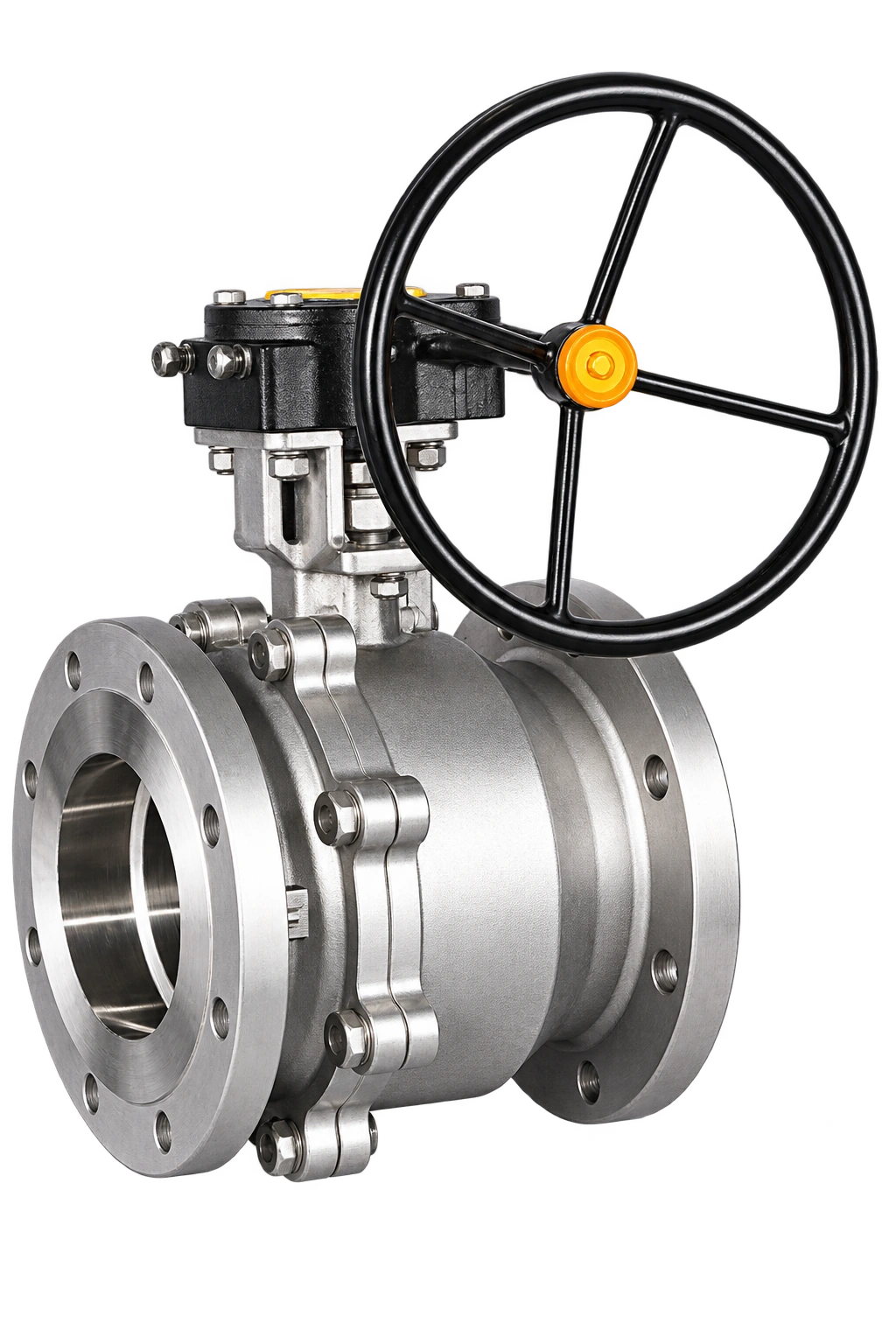

Supplied photographs: Original view 01
