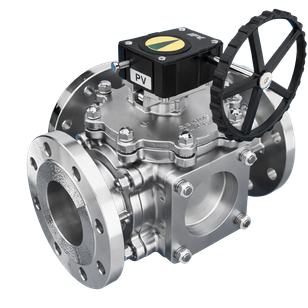

Three Way Ball Valve Flanged End
Flanged, screwed, socket weld, wafer, three-way and trunnion-mounted ball valve configurations.
Size Range: 15mm to 350mm. Pressure Rating: #150 and # 300.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | ASME B 16.34 BS/ EN ISO 17292. |
|---|---|
| Size Range | 15mm to 350mm. |
| Body | WCB, CF3, CF8, CF8M, CF3M, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON. |
| Disc | CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX. |
| Seat | PTFE, RPTFE, MODIFIED PTFE. |
| Pressure Rating | #150 and # 300. |
| Ends | Flanged Ends. |
| Operation | Worm Gear/ Handlever. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 9.
Read the original catalogue specification text
Source title: Three Way Ball Valve Flanged End
Design Std: ASME B 16.34 BS/ EN
ISO 17292.
Size Range: 15mm to 350mm.
Body: WCB, CF3, CF8, CF8M, CF3M,
DUPLEX, HAST ALLOY, MONEL,
DUCTILE IRON, S.G IRON.
Disc: CF3, CF3M, CF8, CF8M, WCB +
ENP, HAST ALLOY, DUPLEX.
Seat: PTFE, RPTFE, MODIFIED PTFE.
Pressure Rating: #150 and # 300.
Ends: Flanged Ends.
Operation: Worm Gear/ Handlever.

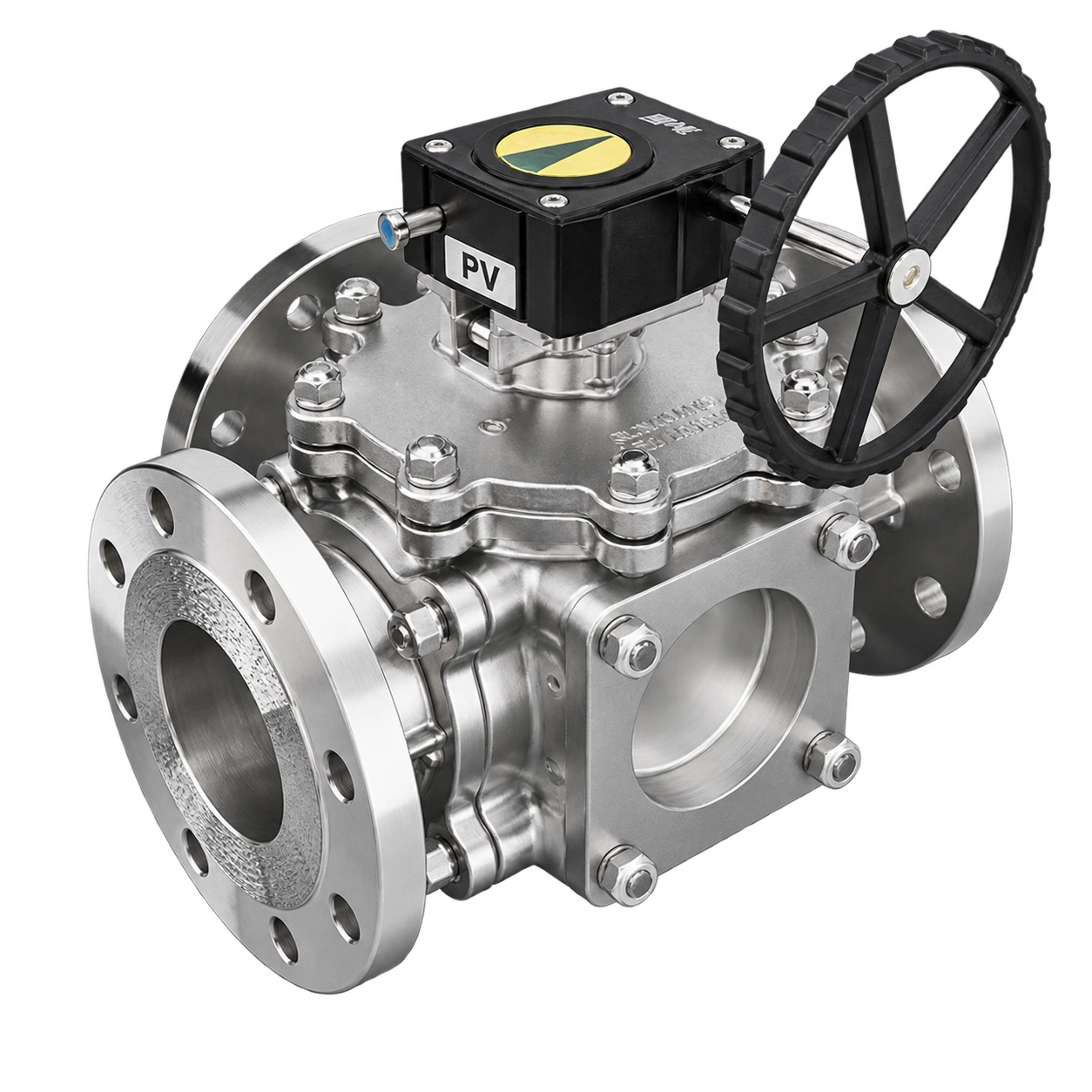

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
