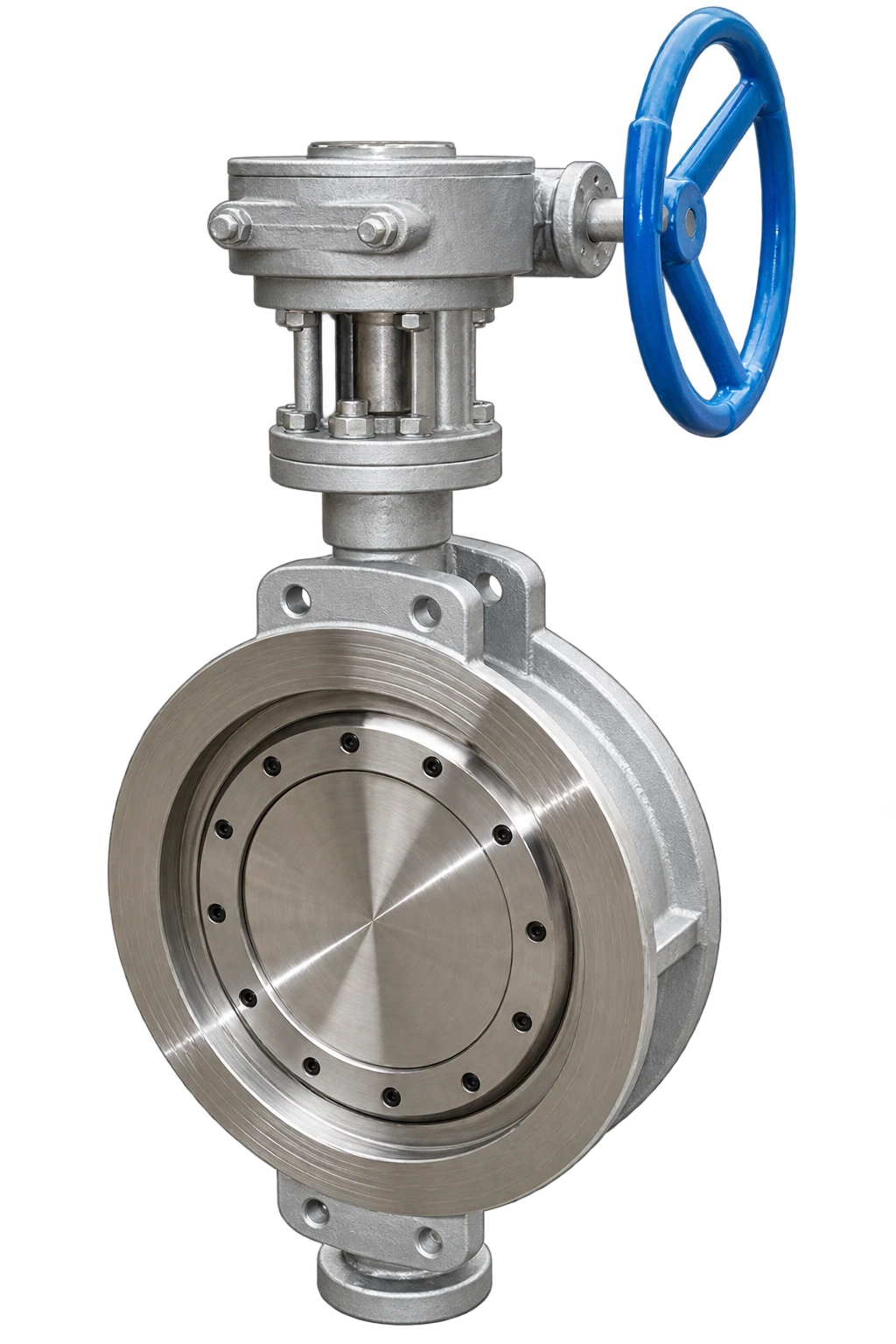

Triple Offset Butterfly Valve Wafer Ends

Name: Triple Offset Butterfly Valve Wafer Ends
Brand: Prestige Valves

Wafer, lug and flanged butterfly valves with material, seat and operation choices for the application.

Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Triple Offset Butterfly Valve Wafer Ends catalogue specifications
Design Std	API 609.
Size Range	25mm to 1200mm.
Body	CI/SGI/WCB/CF8/CF8M/ AB2/NAB.
Disc	SGI/ WCB/ CF8/ CF8M/ AB2/ NAB.
Seat	Metal to Metal.
Ends	Wafer Ends Suitable to ANSI B 16.5 B Class 150.
Pressure Rating	PN10/ PN16.
Operation	Worm Gear.
Note	Also Available in Lever, Pneumatic Actuator and Electrical Actuator.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 6.

Read the original catalogue specification text

Source title: Triple Offset Butterfly Valve Wafer Ends

Design Std: API 609. Size Range: 25mm to 1200mm. Body: CI/SGI/WCB/CF8/CF8M/ AB2/NAB. Disc: SGI/ WCB/ CF8/ CF8M/ AB2/ NAB. Seat: Metal to Metal. Ends: Wafer Ends Suitable to ANSI B 16.5 B Class 150. Pressure Rating: PN10/ PN16. Operation: Worm Gear. Note: Also Available in Lever, Pneumatic Actuator and Electrical Actuator.

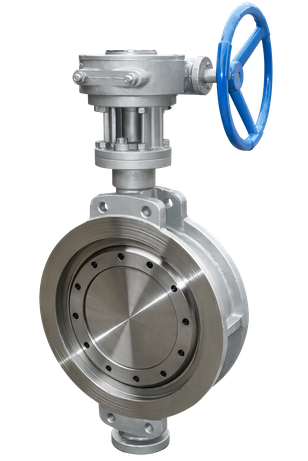

Supplied photographs: Original view 01
