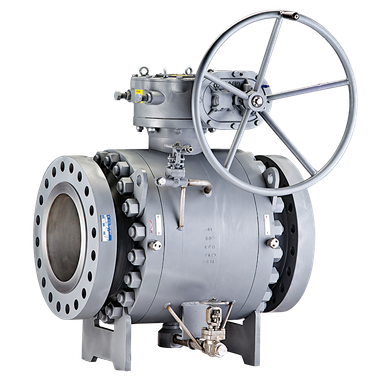

Trunnion Mounted Ball Valve
Flanged, screwed, socket weld, wafer, three-way and trunnion-mounted ball valve configurations.
Size Range: 40mm to 600mm Pressure Rating: #150 and # 300.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 6D. |
|---|---|
| Size Range | 40mm to 600mm |
| Body | WCB/ CF8/ CF8M/ Special Metals. |
| Disc | CF8/ CF8M/ Special Metals. |
| Seat | Metal to Metals |
| Pressure Rating | #150 and # 300. |
| Ends | Flanged, Threaded, Butt Weld. |
| Operation | Worm Gear |
| Note | Also Available in Worm Gear, Pneumatic and Electrical Actuation. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 9.
Read the original catalogue specification text
Source title: Trunnion Mounted Ball Valve.
Design Std: API 6D.
Size Range: 40mm to 600mm
Body: WCB/ CF8/ CF8M/ Special
Metals.
Disc: CF8/ CF8M/ Special Metals.
Seat: Metal to Metals
Pressure Rating: #150 and # 300.
Ends: Flanged, Threaded, Butt
Weld.
Operation: Worm Gear
Note: Also Available in Worm Gear,
Pneumatic and Electrical
Actuation.

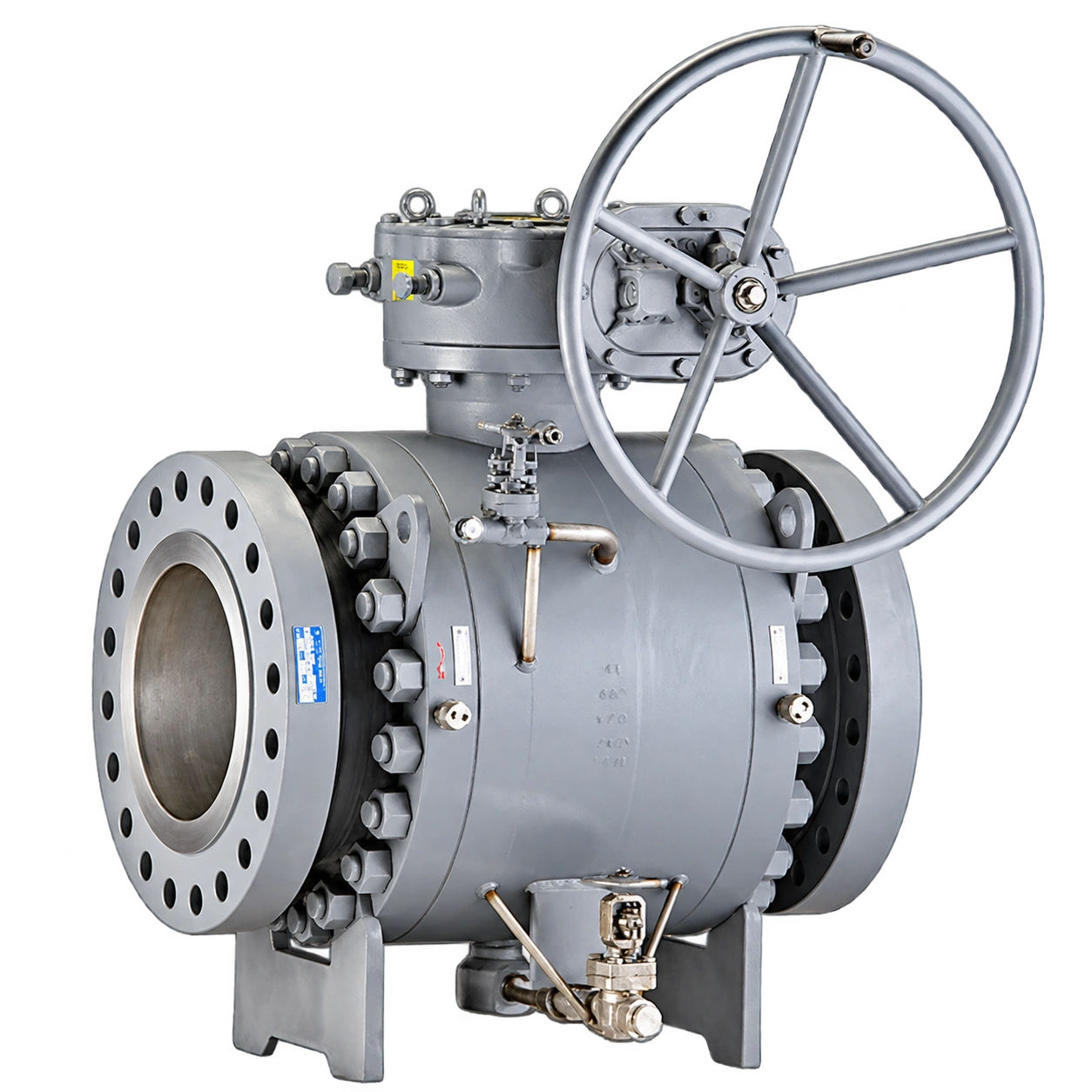

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
