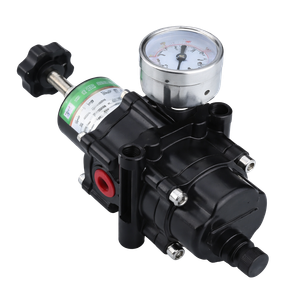

Air Filter Regulator
Limit switches, positioners, gearboxes, manual overrides, solenoid valves and air filter regulators.
Limit switches, positioners, gearboxes, manual overrides, solenoid valves and air filter regulators.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Body Material | Aluminium. |
|---|---|
| Air Connection | PT (NPT) 1/4. |
| Max Supply Pressure | 15kgf/cm2 (231psi). |
| Adjust Range Pressure | 0- 4.2kgf/cm2. |
| Gauge Connection | PT(NPT) 1/8. |
| Ambient Temperature | -20 Deg C -70 Deg C. |
| Min Filtering Size | 5 Micron. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 18.
Read the original catalogue specification text
Source title: Air Filter Regulator
Body Material: Aluminium.
Air Connection: PT (NPT) 1/4.
Max Supply Pressure: 15kgf/cm2
(231psi).
Adjust Range Pressure: 0-
4.2kgf/cm2.
Gauge Connection: PT(NPT) 1/8.
Ambient Temperature: -20 Deg C
-70 Deg C.
Min Filtering Size: 5 Micron.
Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
