Butterfly Damper Single Plate

Name: Butterfly Damper Single Plate
Brand: Prestige Valves

Customizable blind and goggle valves, dampers and ash discharge valves for steel industry applications.

Size Range: 40mm to 1800mm. Operation: Worm Gear/ Electric Actuator.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Butterfly Damper Single Plate catalogue specifications
Design Std	API 609/IS 13095/ BS 5155.
Size Range	40mm to 1800mm.
Body	CI/SGI/WCB/CF8/CF8M/ MS IS 2062
Disc	MS IS 2062/ SS304/ SS316.
Seat	Metal to Metal.
Rating	PN10/ PN16.
Operation	Worm Gear/ Electric Actuator.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 14.

Read the original catalogue specification text

Source title: Butterfly Damper Single Plate

Design Std: API 609/IS 13095/ BS 5155. Size Range: 40mm to 1800mm. Body: CI/SGI/WCB/CF8/CF8M/ MS IS 2062 Disc: MS IS 2062/ SS304/ SS316. Seat: Metal to Metal. Rating: PN10/ PN16. Operation: Worm Gear/ Electric Actuator.

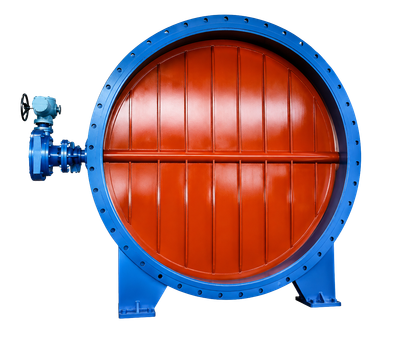

Supplied photographs: Original view 01

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Power & utilities ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
