Manual Override
Limit switches, positioners, gearboxes, manual overrides, solenoid valves and air filter regulators.
Protection Class: Weather proof - IP67.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Body Material | Die Cast Aluminium. |
|---|---|
| Worm Gear Material | 45# Steel. |
| Ratio | 26:1, 28:1, 38: 1, 54:1, 80: 1, 78:1. |
| Rated Output | 250NM - 3000NM. |
| Temperature | -20DegC to 70DegC. |
| Stroke | 0-90 Degrees (+- 5 Degrees Adjustable). |
| Protection Class | Weather proof - IP67. |
| Flanged Connection | ISO 5210 or DIN 3337 Standard. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 18.
Read the original catalogue specification text
Source title: Manual Overide
Body Material: Die Cast Aluminium.
Worm Gear Material: 45# Steel.
Ratio: 26:1, 28:1, 38: 1, 54:1, 80: 1,
78:1.
Rated Output: 250NM - 3000NM.
Temperature: -20DegC to 70DegC.
Stroke: 0-90 Degrees (+- 5 Degrees
Adjustable).
Protection Class: Weather proof -
IP67.
Flanged Connection: ISO 5210 or
DIN 3337 Standard.

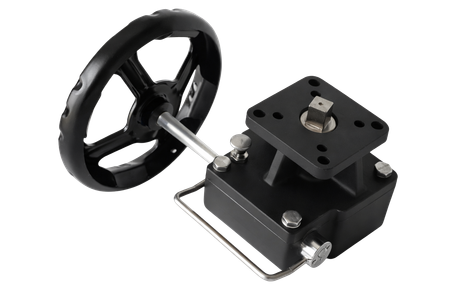

Supplied photographs: Original view 01
