PRESTIGE / CHECK VALVESCHECK VALVES

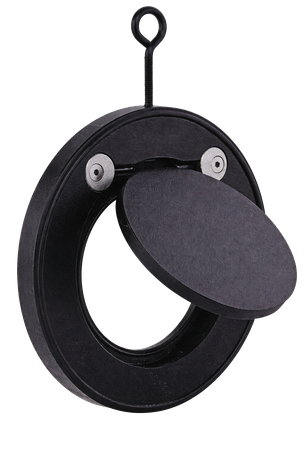

Wafer Type Check Valve CI/ WCB
Dual plate, disc and wafer check valves in cast iron, steel and stainless steel options.
Size Range: 40mm to 1000mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 6D. |
|---|---|
| Size Range | 40mm to 1000mm. |
| Body | CI/ WCB. |
| Plate | CI/ WCB/ Special Metals. |
| Seat | EPDM/ Nitrile. |
| Pressure Rating | PN10/ PN16. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 10.
Read the original catalogue specification text
Source title: Wafer Type Check Valve CI/ WCB
Design Std: API 6D.
Size Range: 40mm to 1000mm.
Body: CI/ WCB.
Plate: CI/ WCB/ Special Metals.
Seat: EPDM/ Nitrile.
Pressure Rating: PN10/ PN16.
Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
