Dual Plate Check Valve

Name: Dual Plate Check Valve
Brand: Prestige Valves

Dual plate, disc and wafer check valves in cast iron, steel and stainless steel options.

Size Range: 50mm to 600mm. Pressure Rating: PN16/ Class 150.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Dual Plate Check Valve catalogue specifications
Design Std	API 594/ API 6D.
Size Range	50mm to 600mm.
Body	CI/ DI/ WCB/ CF8/ CF8M/ Special Metals.
Plate	DI/ WCB/ CF8/ CF8M/ Special Metals.
Seat	EPDM/ Nitrile/ Viton.
Pressure Rating	PN16/ Class 150.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 10.

Read the original catalogue specification text

Source title: Dual Plate Check Valve

Design Std: API 594/ API 6D. Size Range: 50mm to 600mm. Body: CI/ DI/ WCB/ CF8/ CF8M/ Special Metals. Plate: DI/ WCB/ CF8/ CF8M/ Special Metals. Seat: EPDM/ Nitrile/ Viton. Pressure Rating: PN16/ Class 150.

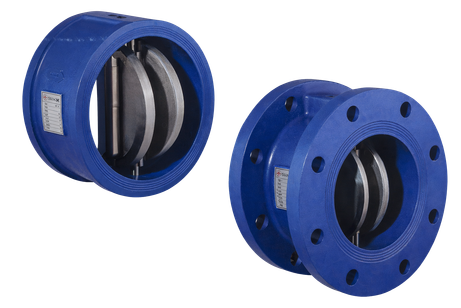

Supplied photographs: Original view 01

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Water & wastewater ↗HVAC & infrastructure ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
