PRESTIGE / SPECIALTY FLOW VALVESSPECIALTY FLOW VALVES
Ball Type Foot Valves
Non-return, foot, sight glass, pressure relief and safety valve solutions.
Size Range: 40mm to 300mm. Pressure Rating: PN6/ PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | Manfacturer Defined. |
|---|---|
| Size Range | 40mm to 300mm. |
| Body | Cast Iron/ WCB. |
| Ball | Nitrile Rubber Coated. |
| Seat | Nitrile Rubber Coated. |
| Pressure Rating | PN6/ PN10/ PN16. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 12.
Read the original catalogue specification text
Source title: Ball Type Foot Valves
Design Std: Manfacturer Defined.
Size Range: 40mm to 300mm.
Body: Cast Iron/ WCB.
Ball: Nitrile Rubber Coated.
Seat: Nitrile Rubber Coated.
Pressure Rating: PN6/ PN10/ PN16.

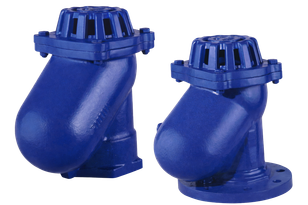

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
