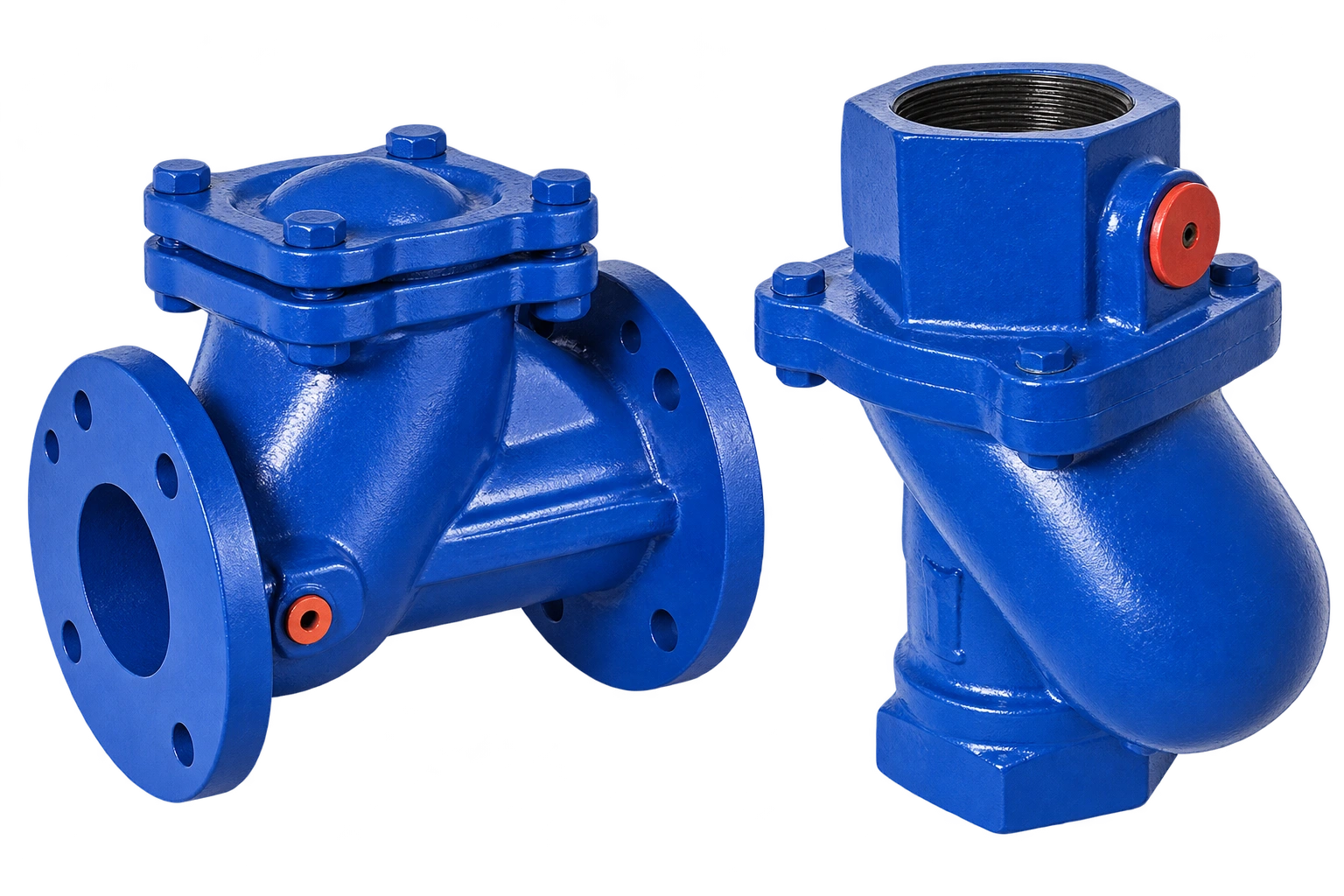

Ball Type Non Return Valves
Size Range: 25mm to 300mm. Pressure Rating: PN6/ PN10/ PN16.
PRESTIGE / SPECIALTY FLOW VALVESSPECIALTY FLOW VALVES

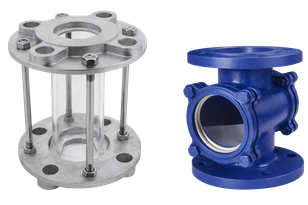

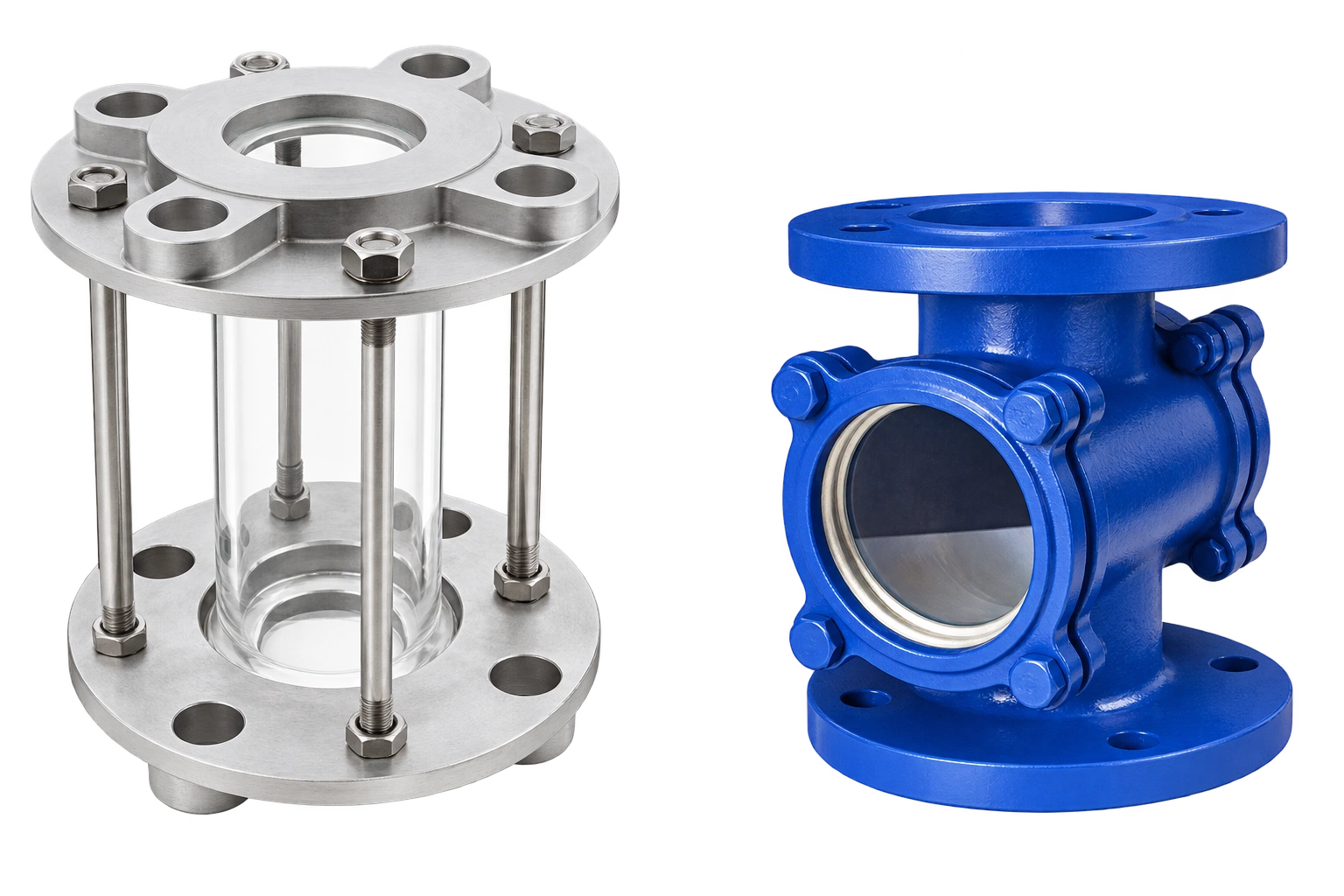

Sight View Glass
Non-return, foot, sight glass, pressure relief and safety valve solutions.
Size Range: 25mm to 150mm. Pressure Rating: PN10/ PN16/ Class 150.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | ASME 16/34. |
|---|---|
| Size Range | 25mm to 150mm. |
| Body | WCB/ CF8/ CF8M/ Special Metals. |
| Glass | Borosilicate. |
| Gasket | PTFE. |
| Pressure Rating | PN10/ PN16/ Class 150. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 12.
Read the original catalogue specification text
Source title: Sight View Glass
Design Std: ASME 16/34.
Size Range: 25mm to 150mm.
Body: WCB/ CF8/ CF8M/ Special
Metals.
Glass: Borosilicate.
Gasket: PTFE.
Pressure Rating: PN10/ PN16/ Class
150.
Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
MORE FROM / SPECIALTY FLOW VALVES
Explore the family.
Specialty Flow ValvesPV / 002

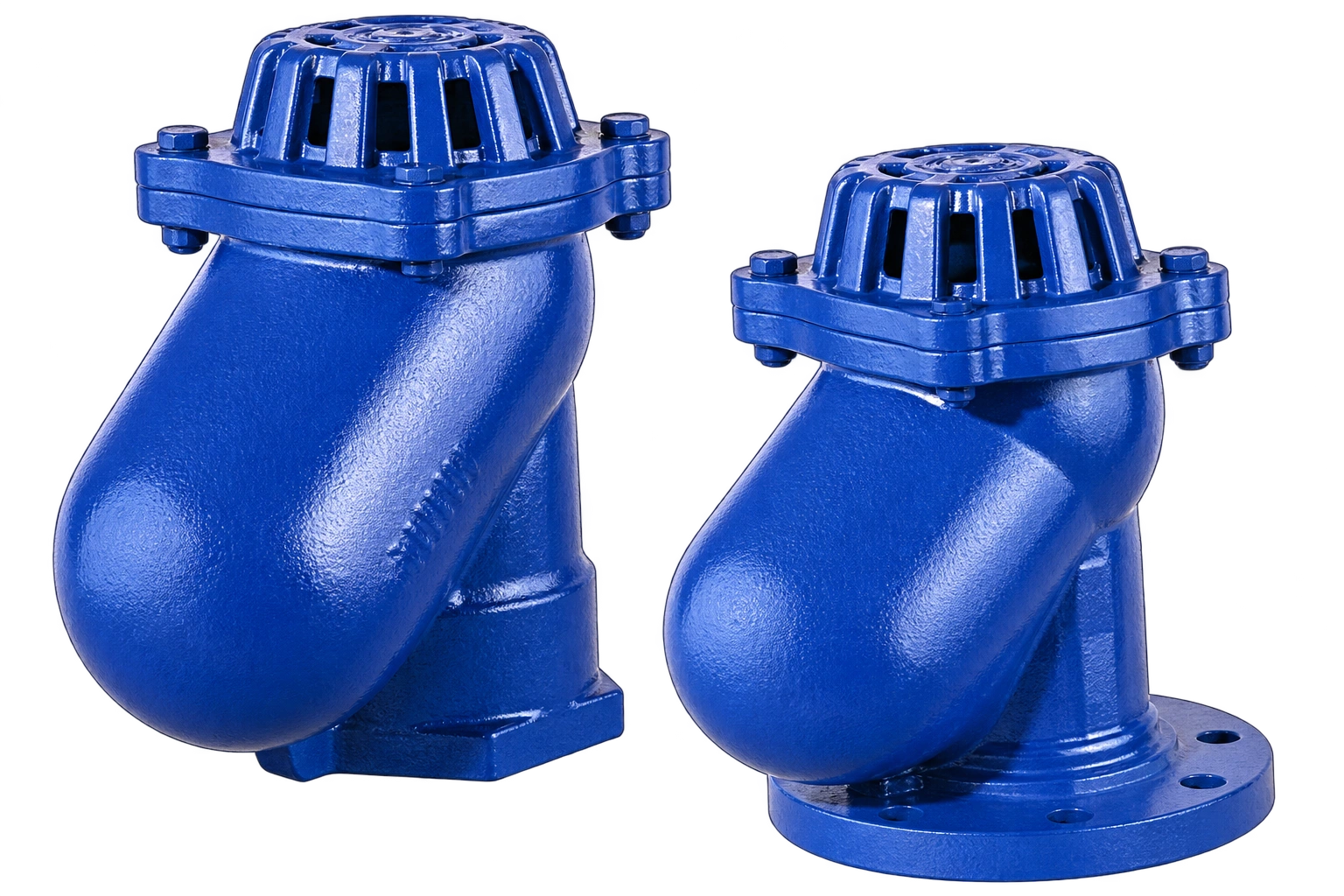

Ball Type Foot Valves
Size Range: 40mm to 300mm. Pressure Rating: PN6/ PN10/ PN16.
Specialty Flow ValvesPV / 003

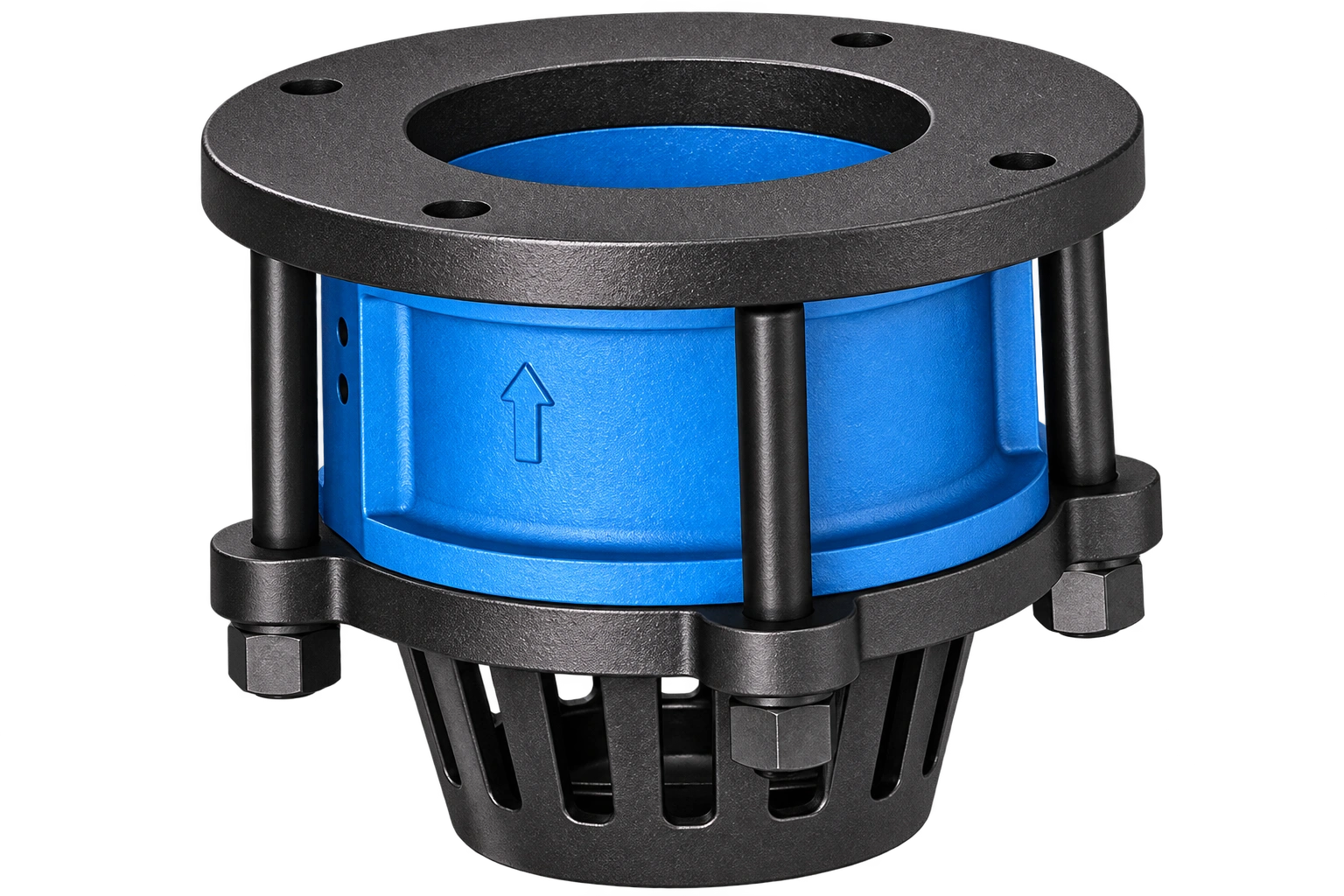

Dual Plate Foot Valves
