Dual Plate Foot Valves
Non-return, foot, sight glass, pressure relief and safety valve solutions.
Size Range: 50mm to 200mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | Manfacturer Defined. |
|---|---|
| Size Range | 50mm to 200mm. |
| Body | WCB/ CF8/ CF8M/ Special Metals. |
| Plate | CF8/ CF8M/ Special Metals. |
| Seat | EPDM/ Nitrile/ Viton. |
| Pressure Rating | PN10/ PN16. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 12.
Read the original catalogue specification text
Source title: Dual Plate Foot Valves
Design Std: Manfacturer Defined.
Size Range: 50mm to 200mm.
Body: WCB/ CF8/ CF8M/ Special
Metals.
Plate: CF8/ CF8M/ Special Metals.
Seat: EPDM/ Nitrile/ Viton.
Pressure Rating: PN10/ PN16.

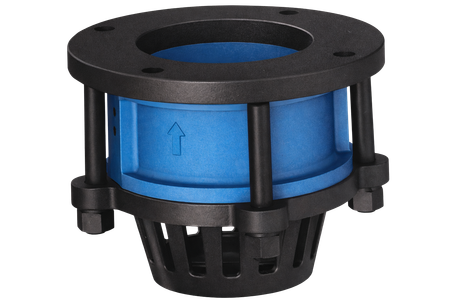

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
