Dome Valve
Dome, ceramic gate, hydraulic butterfly and boiler check valve configurations.
Size Range: 25mm to 600mm. Pressure Rating: PN10/ PN16/ PN25.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | Manufacturers Standard. |
|---|---|
| Size Range | 25mm to 600mm. |
| Body | CI/SGI/WCB/CF8/CF8M. |
| Disc | SGI/ WCB/ CF8/ CF8M. |
| Seat | EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble and Moulded). |
| Pressure Rating | PN10/ PN16/ PN25. |
| Operation | Pneumatic and Electric Actuator. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 15.
Read the original catalogue specification text
Source title: Dome Valve
Design Std: Manufacturers
Standard.
Size Range: 25mm to 600mm.
Body: CI/SGI/WCB/CF8/CF8M.
Disc: SGI/ WCB/ CF8/ CF8M.
Seat: EPDM/ Nitrile/ Silicon/
Viton/ Hypalon (Replaceble
and Moulded).
Pressure Rating: PN10/ PN16/
PN25.
Operation: Pneumatic and
Electric Actuator.

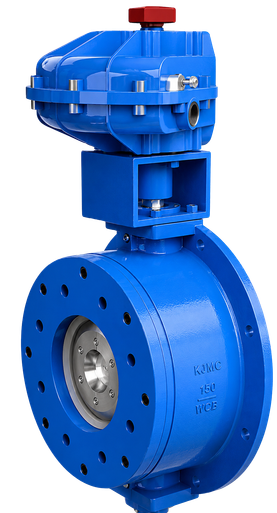

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
