Hydraulic Type Butterfly Valve with Hammer

Name: Hydraulic Type Butterfly Valve with Hammer
Brand: Prestige Valves

Dome, ceramic gate, hydraulic butterfly and boiler check valve configurations.

Size Range: 40mm to 1800mm. Operation: Hydraulic Operation with Hammer Arrangement.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Hydraulic Type Butterfly Valve with Hammer catalogue specifications
Design Std	API 609/IS 13095/ BS 5155.
Size Range	40mm to 1800mm.
Body	CI/SGI/WCB/CF8/CF8M/ MS IS 2062
Disc	WCB/SGI/ SS304/ SS316.
Seat	Metal to Metal/ EPDM/ Silicon.
Rating	PN10/ PN16.
Operation	Hydraulic Operation with Hammer Arrangement.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 15.

Read the original catalogue specification text

Source title: Hydraulic Type Butterfly Valve with Hammer

Design Std: API 609/IS 13095/ BS 5155. Size Range: 40mm to 1800mm. Body: CI/SGI/WCB/CF8/CF8M/ MS IS 2062 Disc: WCB/SGI/ SS304/ SS316. Seat: Metal to Metal/ EPDM/ Silicon. Rating: PN10/ PN16. Operation: Hydraulic Operation with Hammer Arrangement.

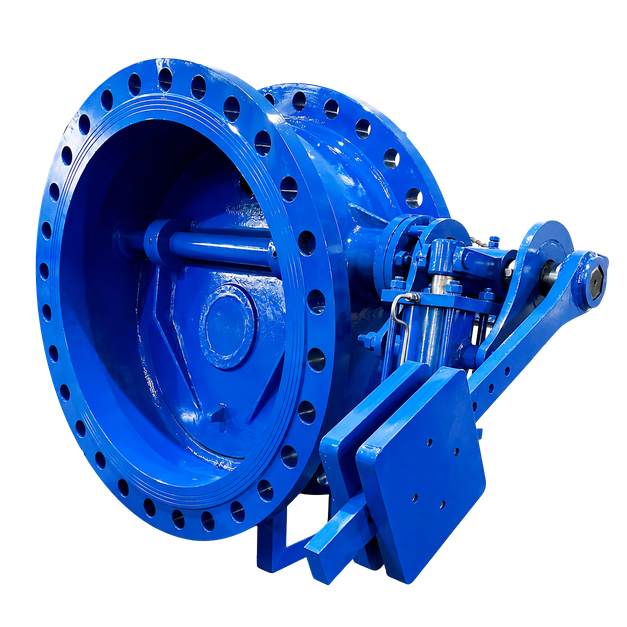

Supplied photographs: Original view 01
