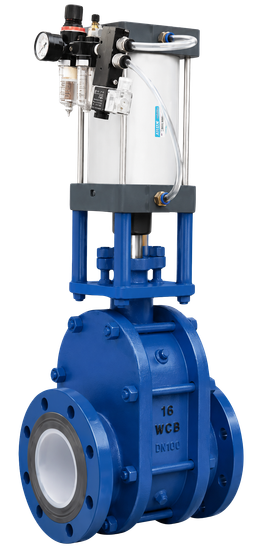

Ceramic Double Gate Valve Pneumatically Operated

Name: Ceramic Double Gate Valve Pneumatically Operated
Brand: Prestige Valves

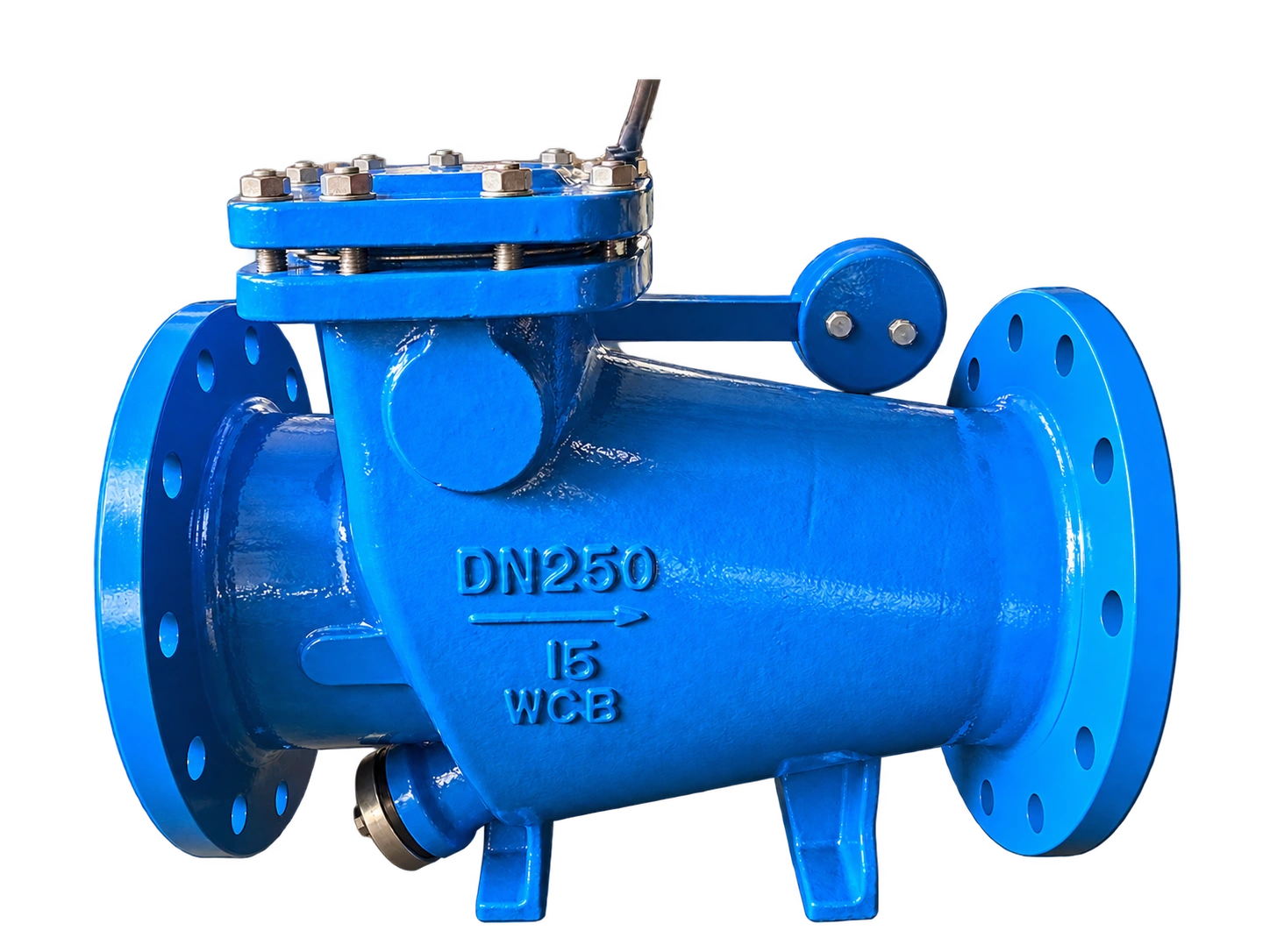

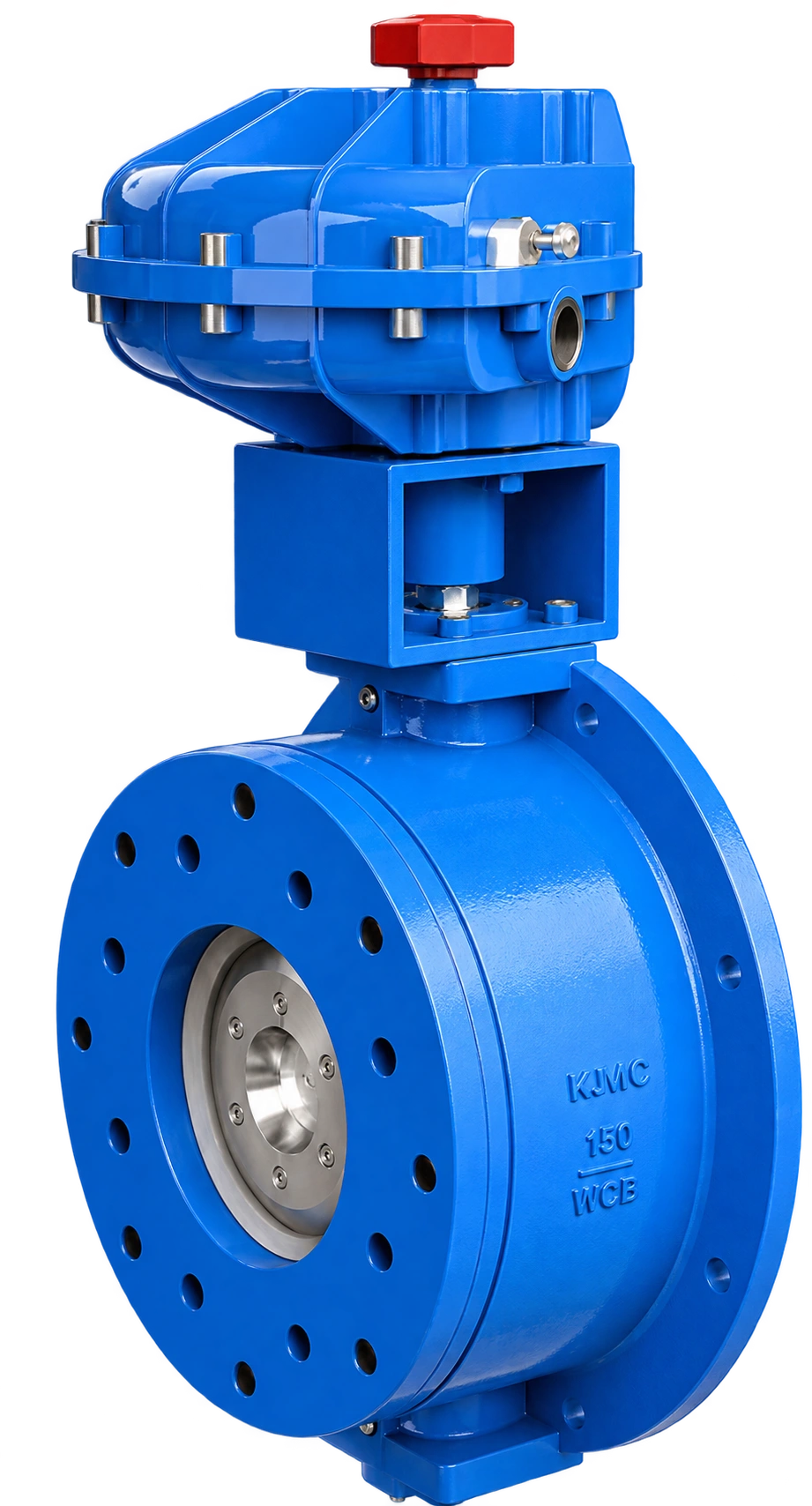

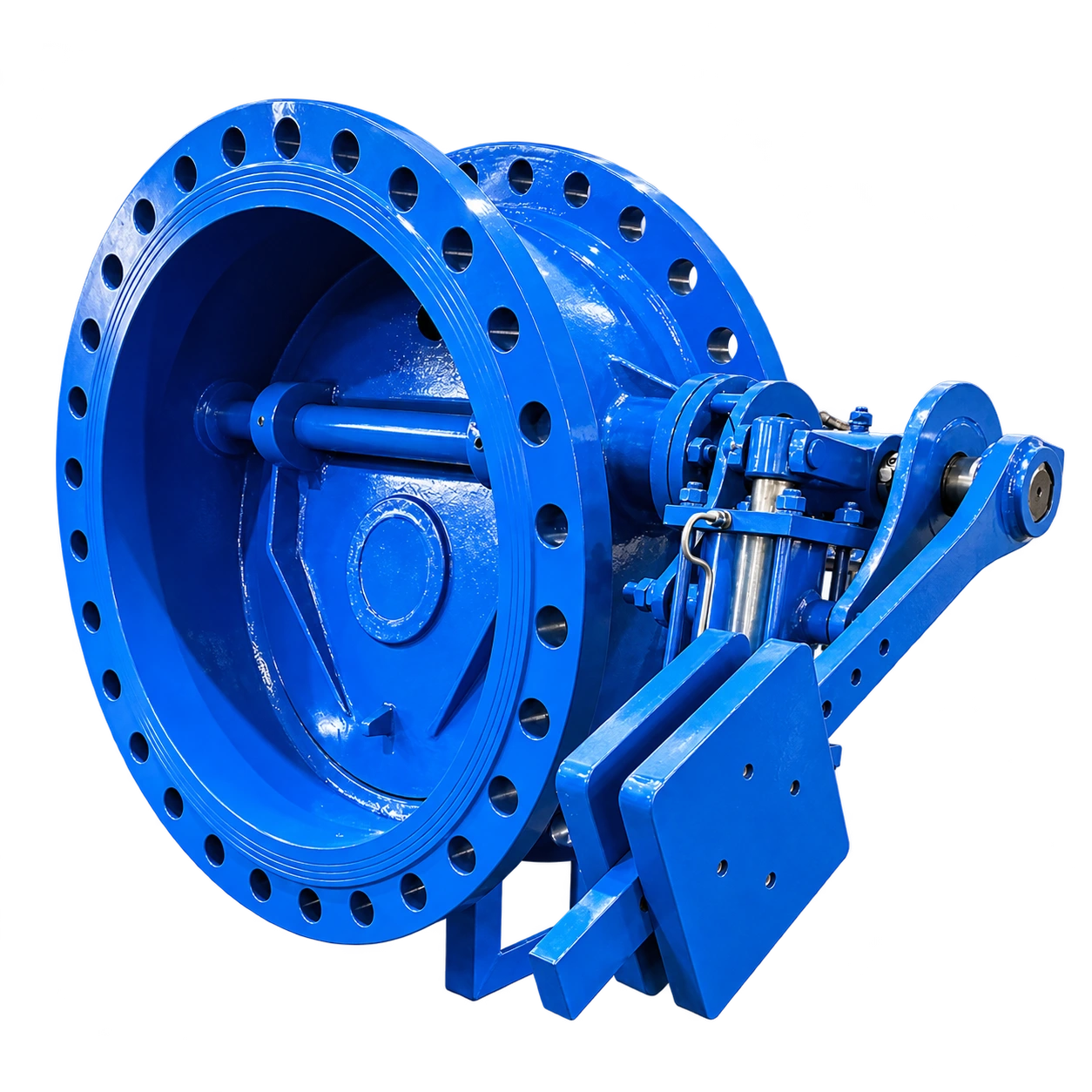

Dome, ceramic gate, hydraulic butterfly and boiler check valve configurations.

Size Range: 25mm to 350mm. Pressure Rating: PN10/ PN16/ PN25.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Ceramic Double Gate Valve Pneumatically Operated catalogue specifications
Design Std	Manufacturers Standard.
Size Range	25mm to 350mm.
Body	WCB
Disc	Ceramic Cum WCB.
Seat	Ceramic.
Pressure Rating	PN10/ PN16/ PN25.
Operation	Pnuematic Operation.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 15.

Read the original catalogue specification text

Source title: Ceramic Double Gate Valve Pnumatic Opnt

Design Std: Manufacturers Standard. Size Range: 25mm to 350mm. Body: WCB Disc: Ceramic Cum WCB. Seat: Ceramic. Pressure Rating: PN10/ PN16/ PN25. Operation: Pnuematic Operation.

Supplied photographs: Original view 01

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Mining & slurry ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
