Fabricated Knife Edge Gate Valve

Name: Fabricated Knife Edge Gate Valve
Brand: Prestige Valves

Knife edge gate, fabricated gate and pulp valves with manual and automated operation options.

Size Range: 40mm to 1000mm. Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Fabricated Knife Edge Gate Valve catalogue specifications
Design Std	Customisable.
Size Range	40mm to 1000mm.
Body	MS/ SS.
Disc	MS/ SS.
Seat	Metal to Metal (Class II Leakage).
Pressure Rating	PN10/ PN16.
Operation	Hand Wheel.
Note	Also Available in Gear. Pneumatic Actuator and Electrical Actuator.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 6.

Read the original catalogue specification text

Source title: Fabricated Knife Edge Gate Valve

Design Std: Customisable. Size Range: 40mm to 1000mm. Body: MS/ SS. Disc: MS/ SS. Seat: Metal to Metal (Class II Leakage). Pressure Rating: PN10/ PN16. Operation: Hand Wheel. Note: Also Available in Gear. Pneumatic Actuator and Electrical Actuator.

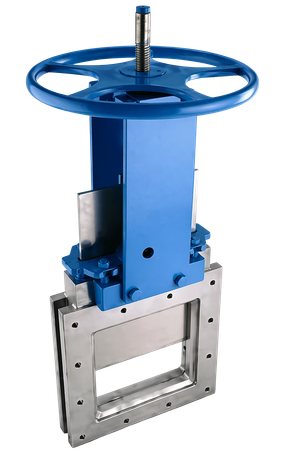

Supplied photographs: Original view 01

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Mining & slurry ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
