Knife Edge Gate Valve Wafer / Lug Ends

Name: Knife Edge Gate Valve Wafer / Lug Ends
Brand: Prestige Valves

Knife edge gate, fabricated gate and pulp valves with manual and automated operation options.

Size Range: 40mm to 600mm Pressure Rating: PN10/ PN16.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Knife Edge Gate Valve Wafer / Lug Ends catalogue specifications
Design Std	MS SP81.
Size Range	40mm to 600mm
Body	CI/SGI/WCB/CF8/CF8M.
Disc	SGI/ WCB/ CF8/ CF8M.
Seat	EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble).
Pressure Rating	PN10/ PN16.
Operation	Hand Wheel.
Note	Also Available in Gear. Pneumatic Actuator and Electrical Actuator.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 6.

Read the original catalogue specification text

Source title: Knife Edge Gate Valve Wafer / Lug Ends

Design Std: MS SP81. Size Range: 40mm to 600mm Body: CI/SGI/WCB/CF8/CF8M. Disc: SGI/ WCB/ CF8/ CF8M. Seat: EPDM/ Nitrile/ Silicon/ Viton/ Hypalon (Replaceble). Pressure Rating: PN10/ PN16. Operation: Hand Wheel. Note: Also Available in Gear. Pneumatic Actuator and Electrical Actuator.

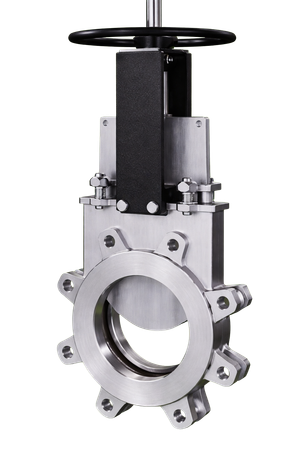

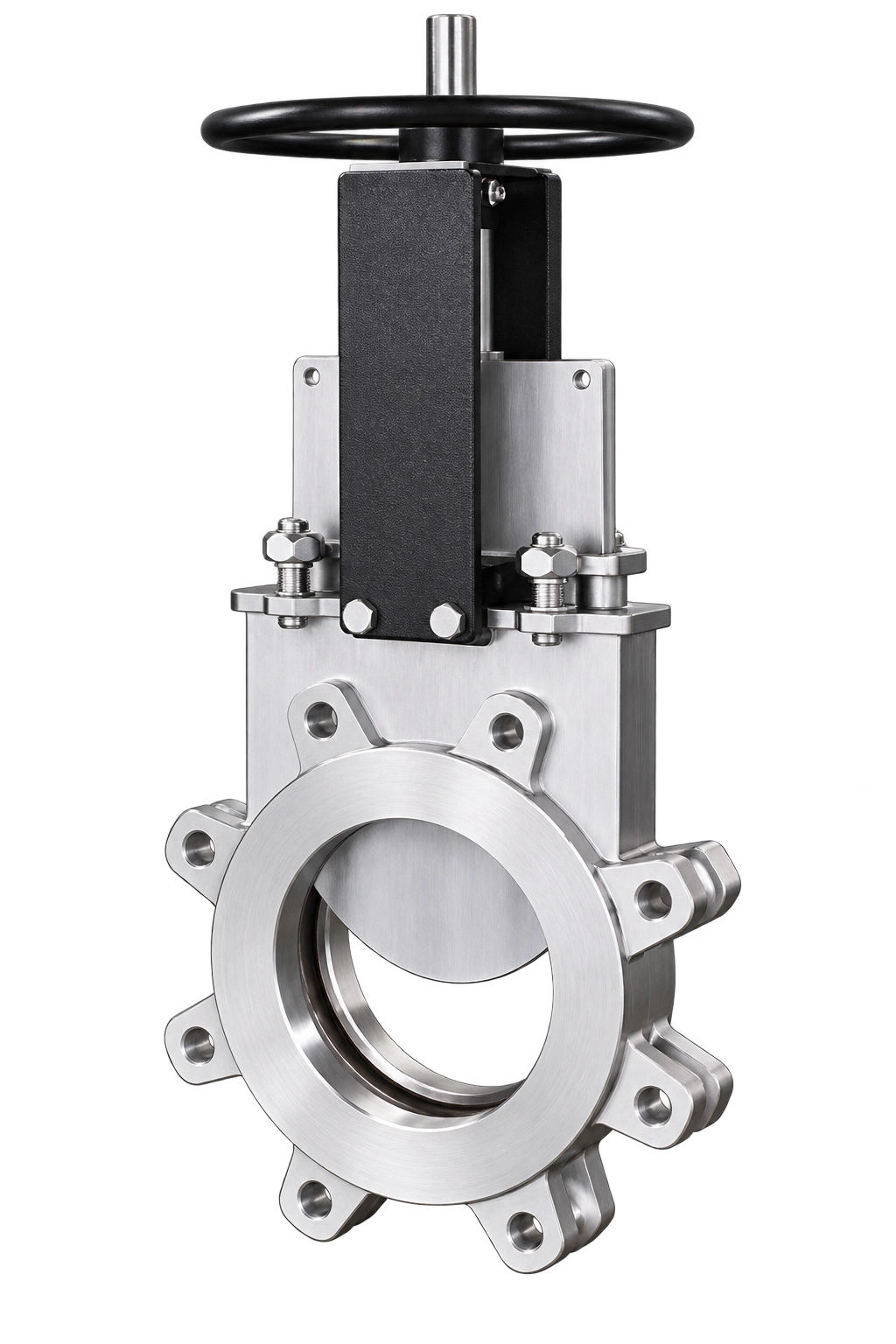

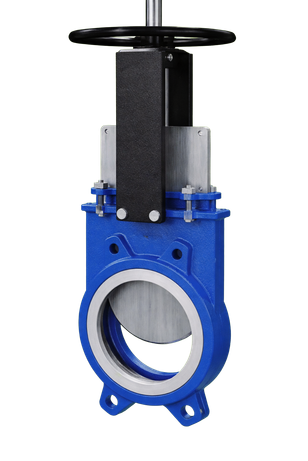

Supplied photographs: Original view 01 · Original view 02

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Mining & slurry ↗Sugar industries ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
