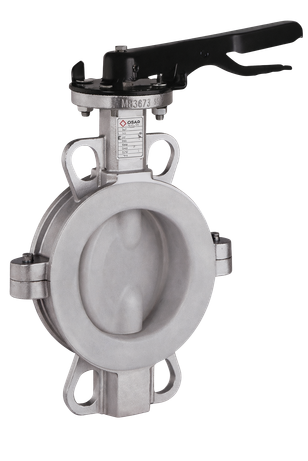

Lined Butterfly Valve
PFA/FEP-lined butterfly, ball and plug valves with material and actuation choices.
Size Range: 50mm to 200mm. Pressure Rating: PN10/ PN16/ PN25.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 609 Cat A. |
|---|---|
| Size Range | 50mm to 200mm. |
| Body | WCB/ CF8/ CF8M/ Special Metals. |
| Lining | PFA/ FEP. |
| Seat | PTFE/ RPTFE/ GFT/ CFT/ TFM/ PEEK. |
| Pressure Rating | PN10/ PN16/ PN25. |
| End Connections | Wafer Semi Lug Type. |
| Operation | Manual/ Gear/ Pneumatic and Electric Actuation. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 10.
Read the original catalogue specification text
Source title: Lined Butterfly Valve
Design Std: API 609 Cat A.
Size Range: 50mm to 200mm.
Body: WCB/ CF8/ CF8M/ Special
Metals.
Lining: PFA/ FEP.
Seat: PTFE/ RPTFE/ GFT/ CFT/ TFM/
PEEK.
Pressure Rating: PN10/ PN16/
PN25.
End Connections: Wafer Semi Lug
Type.
Operation: Manual/ Gear/
Pneumatic and Electric Actuation.
Supplied photographs: Original view 01
APPLICATIONS / START THE DISCUSSION
Consider the service.
Then the configuration.
These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
