Lined Plug Valve
PFA/FEP-lined butterfly, ball and plug valves with material and actuation choices.
Size Range: 15mm to 150mm. Pressure Rating: Class 150.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 599. |
|---|---|
| Size Range | 15mm to 150mm. |
| Body | WCB/ CF8/ CF8M/ Special Metals. |
| Lining | PFA/ FEP. |
| Seat | PTFE/ RPTFE/ GFT/ CFT/ TFM/ PEEK. |
| Pressure Rating | Class 150. |
| End Connections | Suitable to Suite ASME B 16.5 Class 150. |
| Operation | Manual/ Gear/ Pneumatic and Electric Actuation. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 10.
Read the original catalogue specification text
Source title: Lined Plug Valve
Design Std: API 599.
Size Range: 15mm to 150mm.
Body: WCB/ CF8/ CF8M/ Special
Metals.
Lining: PFA/ FEP.
Seat: PTFE/ RPTFE/ GFT/ CFT/ TFM/
PEEK.
Pressure Rating: Class 150.
End Connections: Suitable to Suite
ASME B 16.5 Class 150.
Operation: Manual/ Gear/
Pneumatic and Electric Actuation.

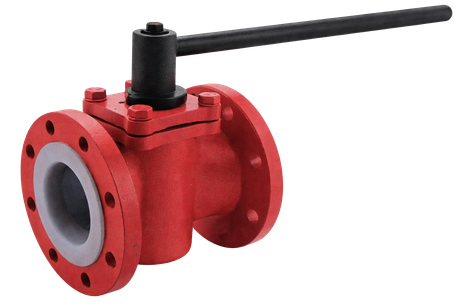

Supplied photographs: Original view 01
APPLICATIONS / START THE DISCUSSION
Consider the service.
Then the configuration.
These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
