FLOW CONTROL / Chemical & process
Chemical and process lines require attention to the fluid composition, seal compatibility and containment requirements. Lined valve designs are one route to review for corrosive duties.
Discuss your application
Chemical and process selection starts with the actual medium, including concentration, temperature range and cleaning conditions. Review containment, on/off operation and any regulation requirement separately so the valve design, wetted materials and automation match the process rather than a broad industry label.
Lined butterfly, ball and plug valves are catalogue options to review for chemical isolation. The appropriate design depends on the medium, pressure, temperature, connection and shut-off requirement; a lining name does not establish resistance to every chemical or mixture.
Transfer sequences may require repeated opening and closing with confirmation of valve position. Review a pneumatic ball-valve assembly against the cycle frequency, operating differential pressure, available air and control signal, then confirm the requested action if air or power is lost.
A command to move a valve and a signal confirming its position perform different jobs. When connecting a valve to a control system, define the pilot solenoid, position indication and interface required, with the electrical and area requirements confirmed for the complete assembly.
SELECTION / LOOK BEYOND LINE SIZE
A familiar chemical can behave differently as concentration, temperature or contamination changes. Describe the full operating range and cleaning fluids instead of relying on a single fluid name or a general stainless-steel preference.
Stopping a line and continuously adjusting its flow are distinct duties. If the process needs modulation, give flow and pressure-drop information and request a configuration intended for control rather than simply adding an actuator to an on/off valve.
Outdoor exposure, chemical fumes and washdown can affect the operating assembly as well as the fluid-contact parts. Include the surrounding conditions and required enclosure protection in the enquiry.
Body, trim, seals and actuation need to work together under your service conditions.
Review the lining together with seats, stem seals and any other wetted components. Confirm the quoted material set for normal operation, startup and cleaning, including any unusual pressure or temperature conditions specified by the process.
Actuator selection needs the valve's required torque or thrust under the specified conditions. Supply cycle frequency, air or power availability, speed requirements and desired failure position so the operating package can be assessed together.
Where the plant specifies hazardous-area equipment, emissions limits or particular inspection records, state them explicitly. Ask the team to confirm the available configuration and documentation; these requirements are not implied by the application category.
Explore these catalogue configurations, compare their specifications and share your operating conditions with our team.
Review a lined butterfly configuration against the medium.
Size Range: 50mm to 200mm. Pressure Rating: PN10/ PN16/ PN25.
Explore lined quarter-turn isolation.
Size Range: 25mm to 150mm. Pressure Rating: Class 150.

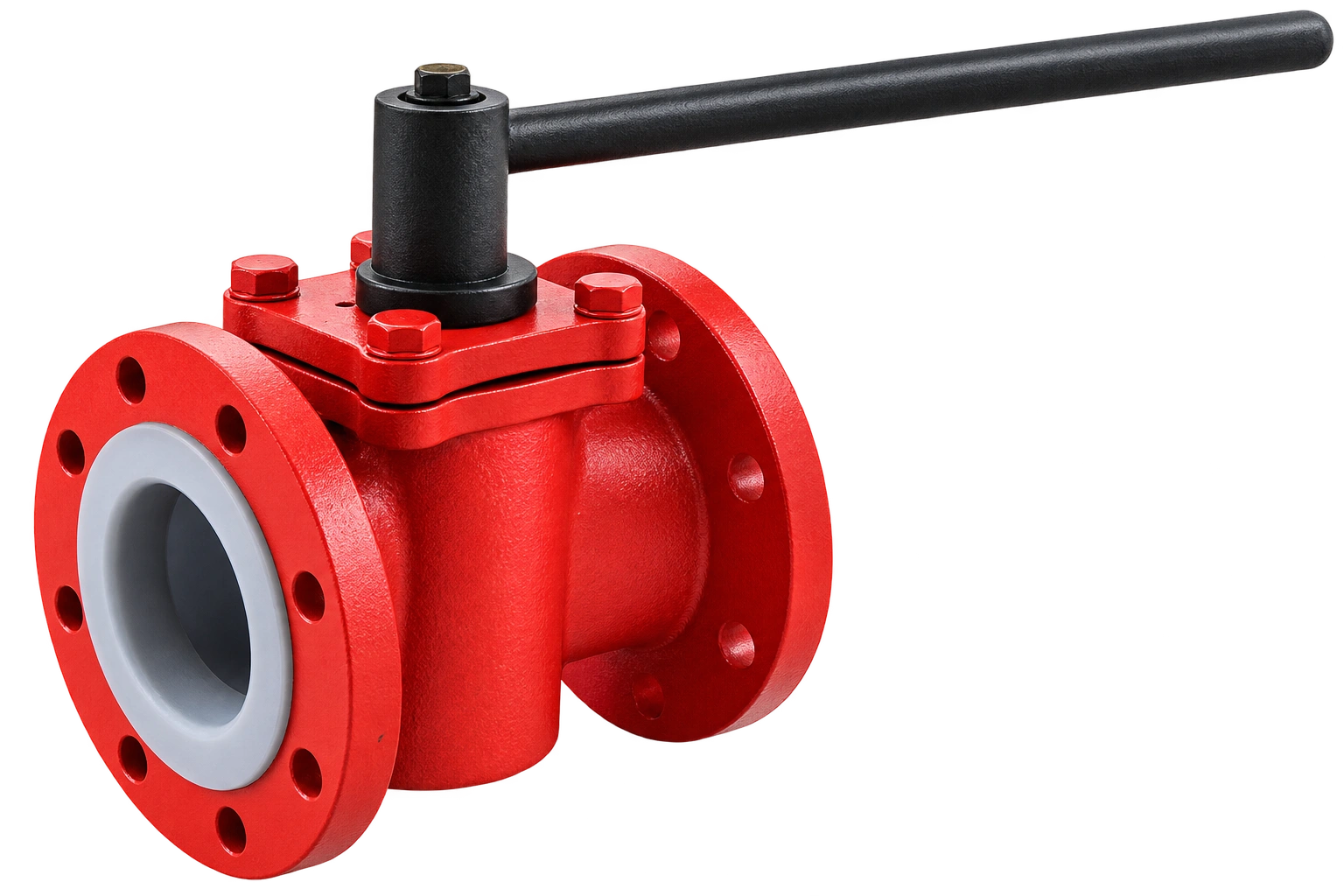

Review lined plug valve isolation options.
Size Range: 15mm to 150mm. Pressure Rating: Class 150.
Explore automated on/off operation.
Size Range: 25mm to 300mm. Pressure Rating: Class 150/ Class 300.
Review for plant integration and feedback.

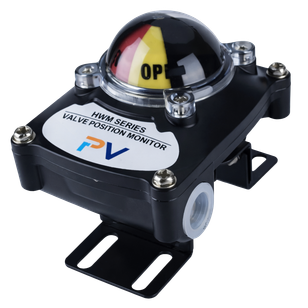

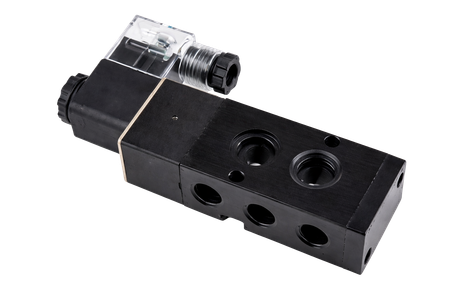

Limit switches, positioners, gearboxes, manual overrides, solenoid valves and air filter regulators.
Review for plant integration and feedback.
Limit switches, positioners, gearboxes, manual overrides, solenoid valves and air filter regulators.
Final selection depends on the complete valve configuration, fluid compatibility and operating duty. Project-specific approvals and limits are confirmed with the quotation.
BEFORE YOU SPECIFY / PRACTICAL ANSWERS
Questions worth discussing for your chemical & process application.
Ask our teamNo. Resistance must be reviewed for the exact fluid, concentration and temperature, across all wetted components. Share the process and cleaning conditions so the team can assess the complete configuration rather than the lining alone.
Automation provides movement; it does not by itself establish a metering or control characteristic. For a dosing or modulating duty, include the required flow range, differential pressure and control objective so a suitable configuration can be reviewed.
Include the medium, concentrations, operating limits, function, quantity, connections and required materials. Add the plant specification, control interface, failure response and documentation requirements where applicable. A process description or line drawing often makes the discussion more useful.
Share the medium, duty, size, connections and operating conditions.
