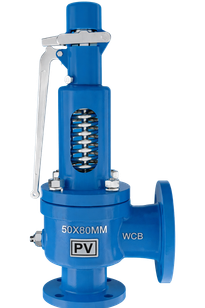

Safety Valves
Non-return, foot, sight glass, pressure relief and safety valve solutions.
Size Range: 15mm to 250mm. Pressure Rating: 0 to 20 Bar (High Pressure on Request).
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | Manufacturers Std. |
|---|---|
| Size Range | 15mm to 250mm. |
| Body | WCB/ CF8/ CF8M. |
| Bonnet | WCB/ CF8/ CF8M. |
| Temperature | 300 Deg C. |
| Pressure Rating | 0 to 20 Bar (High Pressure on Request). |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 12.
Read the original catalogue specification text
Source title: Safety Valves
Design Std: Manufacturers Std.
Size Range: 15mm to 250mm.
Body: WCB/ CF8/ CF8M.
Bonnet: WCB/ CF8/ CF8M.
Temperature: 300 Deg C.
Pressure Rating: 0 to 20 Bar (High
Pressure on Request).

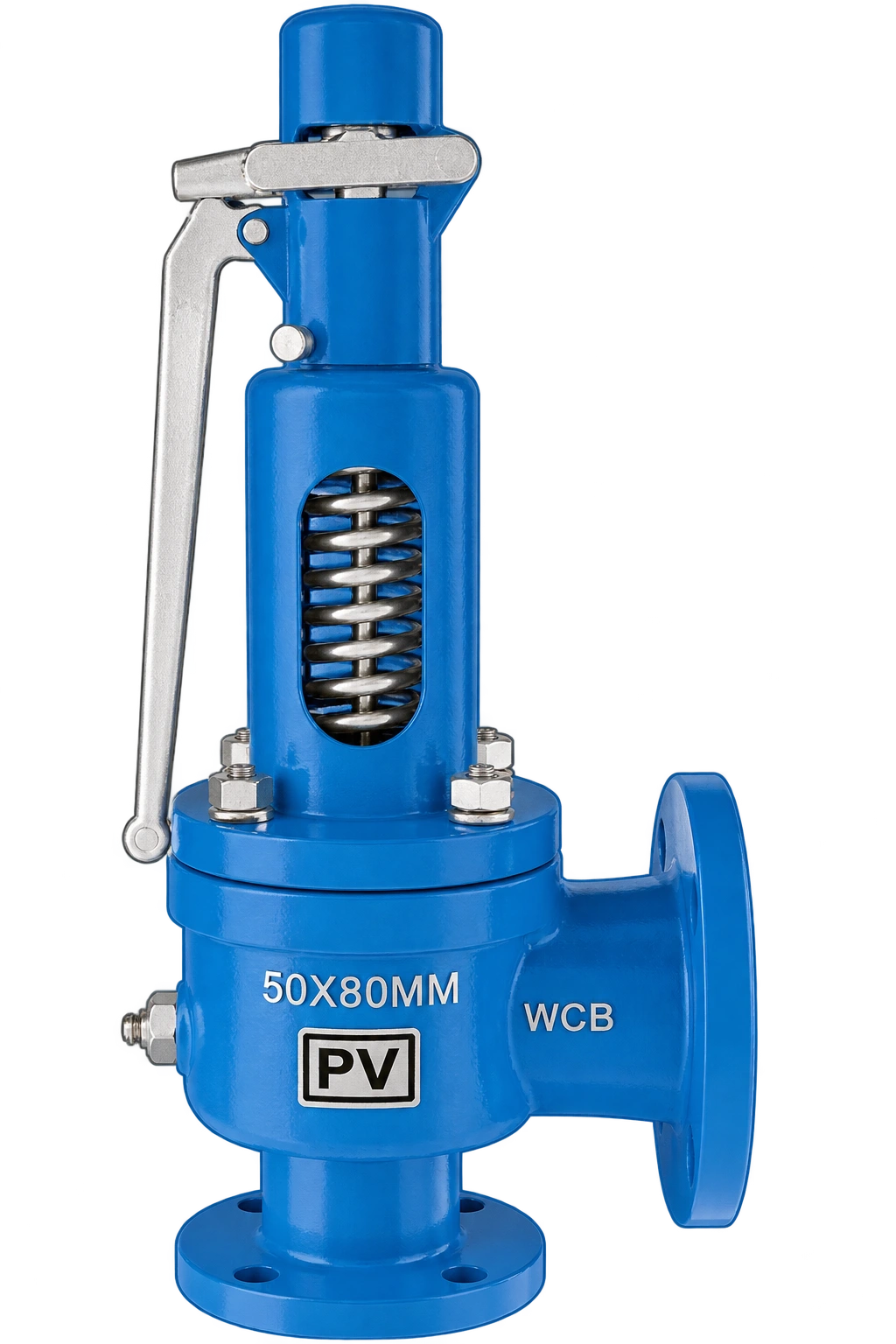

Supplied photographs: Original view 01
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
