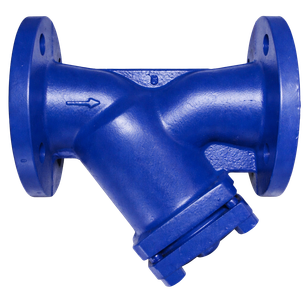

Y Type Strainer Valves
Forged and cast steel isolation, regulation, non-return and strainer solutions.
Size Range: 25mm to 600mm. Pressure Rating: #150.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | IS 14846. |
|---|---|
| Size Range | 25mm to 600mm. |
| Body | CI/ WCB/ CF8/ CF8M/ Special Metals. |
| Pressure Rating | #150. |
| End Connection | Flanged End. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 11.
Read the original catalogue specification text
Source title: Y Type Strainer Valves
Design Std: IS 14846.
Size Range: 25mm to 600mm.
Body: CI/ WCB/ CF8/ CF8M/ Special
Metals.
Pressure Rating: #150.
End Connection: Flanged End.
Supplied photographs: Original view 01
APPLICATIONS / START THE DISCUSSION
Consider the service.
Then the configuration.
These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
MORE FROM / GATE, GLOBE & CHECK VALVES
Explore the family.
Gate, Globe & Check ValvesPV / 002
Forged Steel Globe Valve
Size Range: 15mm-50mm. Pressure Rating: #150 to #2500.
Gate, Globe & Check ValvesPV / 003

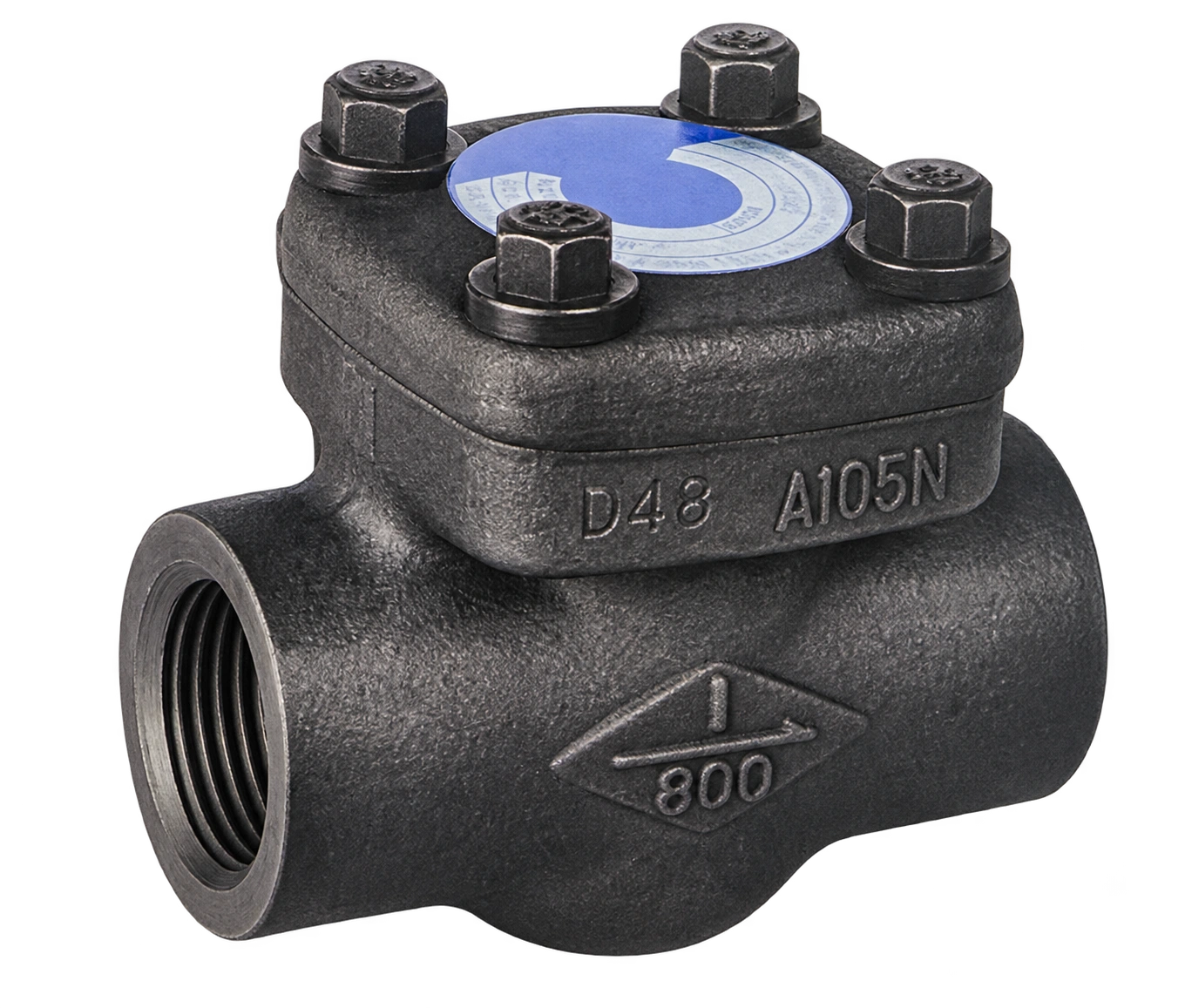

Forged Steel Check Valve
