Forged Steel Globe Valve
Forged and cast steel isolation, regulation, non-return and strainer solutions.
Size Range: 15mm-50mm. Pressure Rating: #150 to #2500.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | API 602/ BS 5352/ ISO 15761/ ASME B 16.34. |
|---|---|
| Size Range | 15mm-50mm. |
| Body | A105/ Special Metals. |
| Disc | CF8/ CF8M/ Special Metals. |
| Seat | Metal Seated. |
| Pressure Rating | #150 to #2500. |
| End Connection | Screwed End/ Socket Weld End/ Flanged End. |
| Operation | Lever. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 11.
Read the original catalogue specification text
Source title: Forged Steel Globe Valve
Design Std: API 602/ BS 5352/ ISO
15761/ ASME B 16.34.
Size Range: 15mm-50mm.
Body: A105/ Special Metals.
Disc: CF8/ CF8M/ Special Metals.
Seat: Metal Seated.
Pressure Rating: #150 to #2500.
End Connection: Screwed End/
Socket Weld End/ Flanged End.
Operation: Lever.

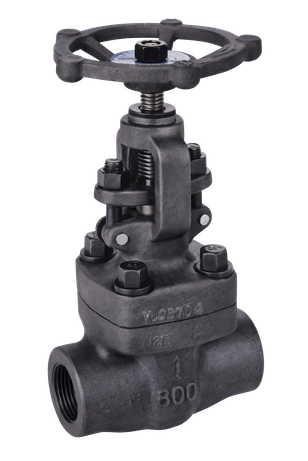

Supplied photographs: Original view 01
APPLICATIONS / START THE DISCUSSION
Consider the service.
Then the configuration.
These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
