Butterfly Valve Electrical Automation
Butterfly and ball valves with pneumatic or electrical automation and application-specific control options.
Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Standard | IS/ ISO 13095 / API609 / BS5155. |
|---|---|
| Design Std | API 609/IS 13095/ BS5155. |
| End connection | Wafer type | Lug Type | Flanged End Type. |
| Size Range | 25mm to 1200mm. |
| Materials Body | CI, SGI/DI, WCB, CF8, CF8M, Super Duplex. |
| Disc | SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc. |
| Seat | EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc. |
| Operation | Electrical Actuated (Motoriesed). |
| Ends | Wafer/ Lug/ Flanged. |
| Pressure Rating | PN10/ PN16. |
| Actuator Varients | Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 7.
Read the original catalogue specification text
Source title: Butterfly Valve Electrical Automation
Design Standard: IS/ ISO 13095 / API609 / BS5155.
Design Std: API 609/IS 13095/ BS5155.
End connection: Wafer type | Lug Type | Flanged End Type.
Size Range: 25mm to 1200mm.
Materials Body: CI, SGI/DI, WCB, CF8, CF8M, Super Duplex.
Disc: SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Seat: EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.
Operation: Electrical Actuated (Motoriesed).
Ends: Wafer/ Lug/ Flanged.
Pressure Rating: PN10/ PN16.
Actuator Varients: Single Phase / 3 Phase / DC Power Options Available,
Local Control / Remote Control Options Available, Manual Over Ride for
operation in case of Power failure, Valve positioning at intermediate
positions, Feedback via Limit Switches & Torque Switches.

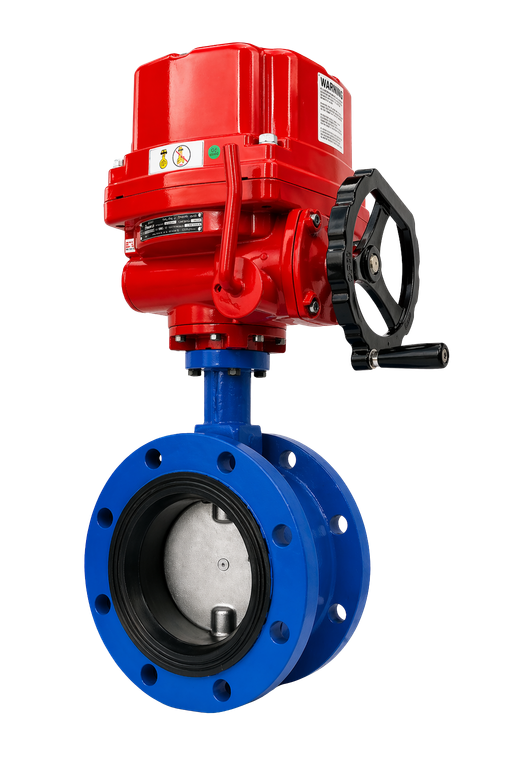

Supplied photographs: Original view 01
