Butterfly Valve Pneumatic Automation
Butterfly and ball valves with pneumatic or electrical automation and application-specific control options.
Size Range: 25mm to 1200mm. Pressure Rating: PN10/ PN16.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Standard | IS/ ISO 13095 / API609 / BS5155. |
|---|---|
| Design Std | API 609/IS 13095/ BS5155. |
| End connection | Wafer type | Lug Type | Flanged End Type. |
| Size Range | 25mm to 1200mm. |
| Materials Body | CI, SGI/DI, WCB, CF8, CF8M, Super Duplex. |
| Disc | SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc. |
| Seat | EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc. |
| Operation | Pneumatically Actuated. |
| Ends | Wafer/ Lug/ Flanged. |
| Pressure Rating | PN10/ PN16. |
| Actuator Varients | Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 7.
Read the original catalogue specification text
Source title: Butterfly Valve Pneumatic Automation
Design Standard: IS/ ISO 13095 / API609 / BS5155.
Design Std: API 609/IS 13095/ BS5155.
End connection: Wafer type | Lug Type | Flanged End Type.
Size Range: 25mm to 1200mm.
Materials Body: CI, SGI/DI, WCB, CF8, CF8M, Super Duplex.
Disc: SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Seat: EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.
Operation: Pneumatically Actuated.
Ends: Wafer/ Lug/ Flanged.
Pressure Rating: PN10/ PN16.
Actuator Varients: Manual Over Ride for operation in case of Power
failure, Valve positioning at intermediate positions, Feedback via Limit
Switches & Torque Switches.

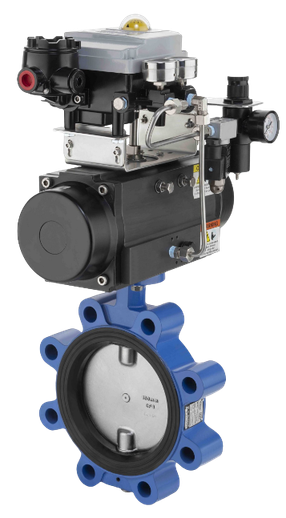

Supplied photographs: Original view 01
APPLICATIONS / START THE DISCUSSION
Consider the service.
Then the configuration.
These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
Your application.
Let’s consider every detail.
Send the medium, size, operating conditions, quantity or a drawing.
