Pneumatic Operated Ball Valve

Name: Pneumatic Operated Ball Valve
Brand: Prestige Valves

Butterfly and ball valves with pneumatic or electrical automation and application-specific control options.

Size Range: 25mm to 300mm. Pressure Rating: Class 150/ Class 300.

Enquire about this product View catalogue page

PRODUCT / TECHNICAL DETAILS

Specifications.
For this configuration.

Pneumatic Operated Ball Valve catalogue specifications
Design Standard	IS/ ISO 17292/ BS 5351.
End connection	Wafer/ Flanged/ Socket Weld/ Screwed End. Design Type: 1 Piece/ 2 Piece/ 3 Piece.
Size Range	25mm to 300mm.
Materials Body	CI, SGI/DI, WCB, CF8, CF8M, Super Duplex.
Disc	SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Seat	PTFE/ RPTFE/ GFT/ PEEK.
Operation	Pneumatically Actuated/ Electrically Actuated.
Pressure Rating	Class 150/ Class 300.
Ends	Flanged/ Socket Weld/ Screwed.
Actuator Varients	Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches.

Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 9.

Read the original catalogue specification text

Source title: Pneumatic Operated Ball Valve

Design Standard: IS/ ISO 17292/ BS 5351. End connection: Wafer/ Flanged/ Socket Weld/ Screwed End. Design Type: 1 Piece/ 2 Piece/ 3 Piece. Size Range: 25mm to 300mm. Materials Body: CI, SGI/DI, WCB, CF8, CF8M, Super Duplex. Disc: SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc. Seat: PTFE/ RPTFE/ GFT/ PEEK. Operation: Pneumatically Actuated/ Electrically Actuated. Pressure Rating: Class 150/ Class 300. Ends: Flanged/ Socket Weld/ Screwed. Actuator Varients: Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches.

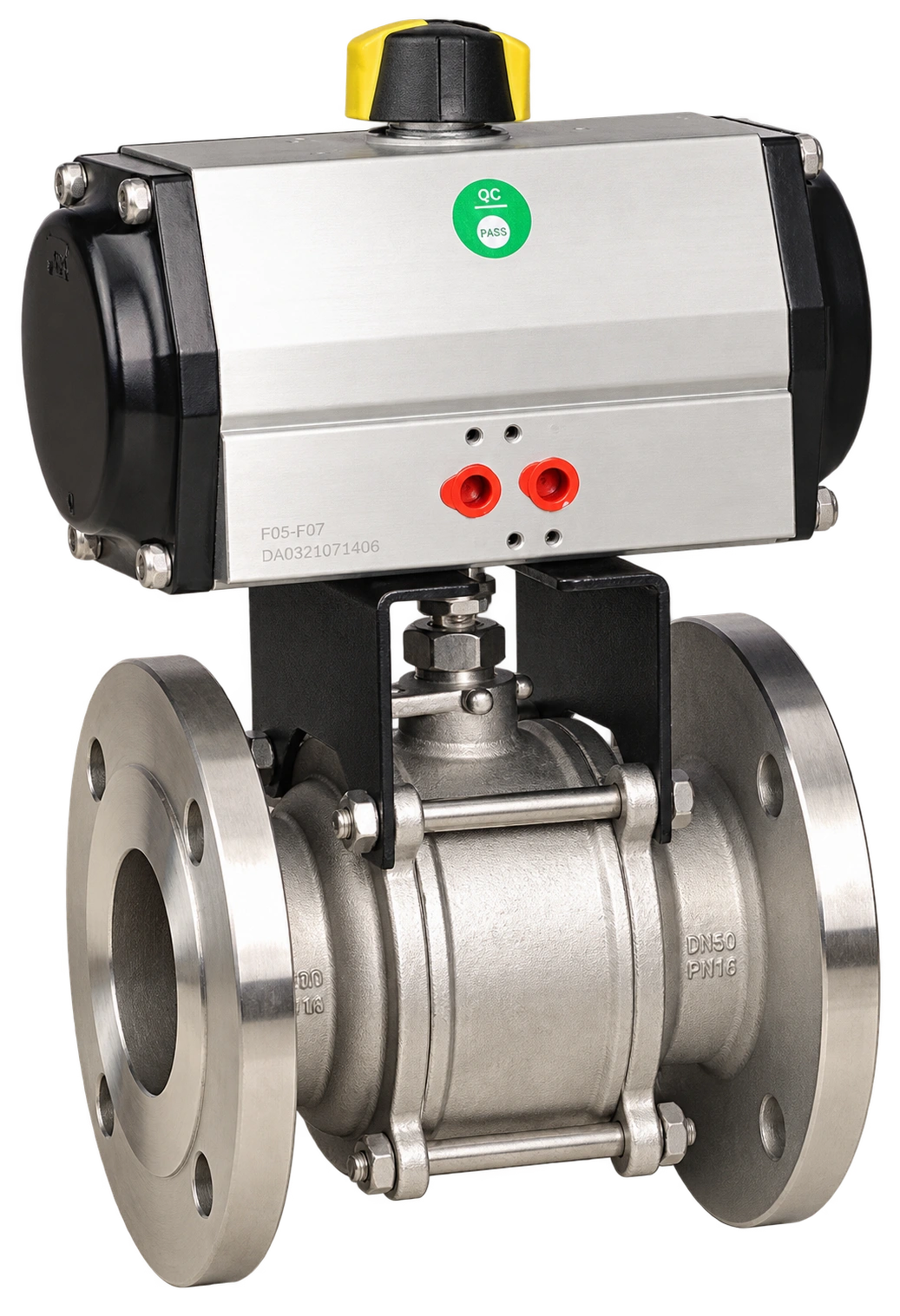

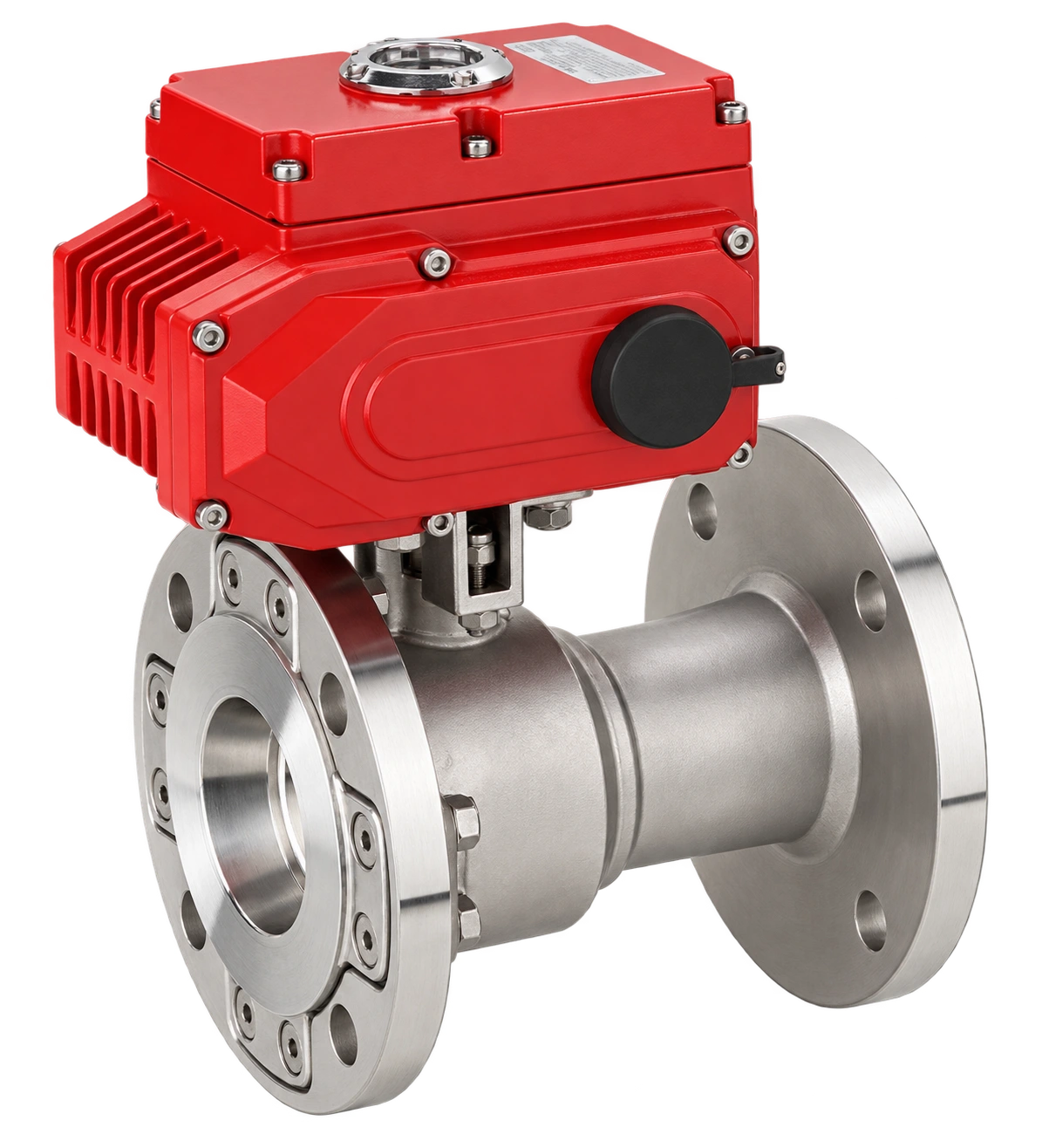

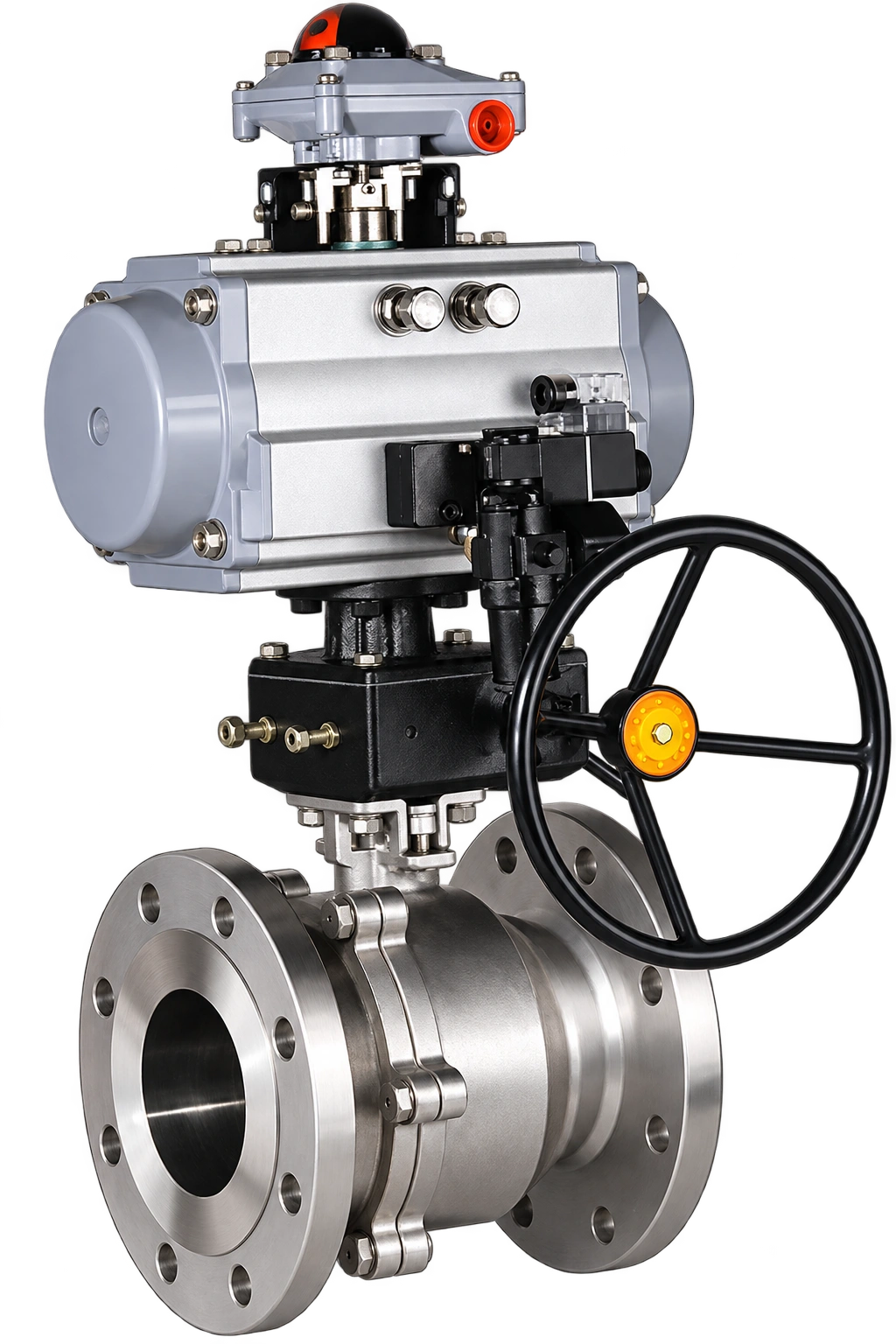

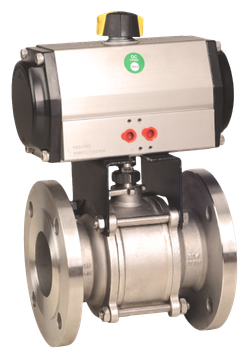

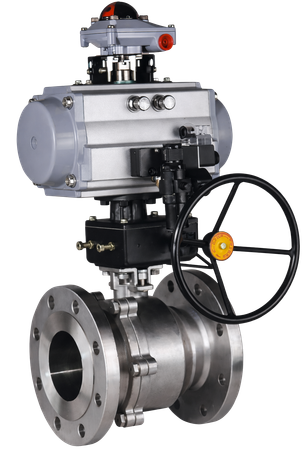

Supplied photographs: Original view 01 · Original view 02 · Original view 03 · Original view 04

APPLICATIONS / START THE DISCUSSION

Consider the service.
Then the configuration.

Chemical & process ↗Food & beverage utilities ↗Pharmaceutical industries ↗

These application contexts are a starting point for selection. Confirm the medium, pressure, temperature, materials, connections and required operation for this catalogue configuration.
