FLOW CONTROL / Pharmaceutical industries
Pharmaceutical sites combine general utilities and chemical batch operations with separately qualified hygienic systems. Define the service boundary before choosing a valve.
Discuss your application
Start by identifying what the valve contacts. General plant utilities and compatible chemical batches can be reviewed against industrial catalogue options. Product-contact, Water for Injection (WFI), pure-steam and sterile systems need separately documented hygienic construction and qualification; a stainless-steel body alone does not establish suitability.
Cooling water, indirect temperature-control circuits and general plant steam should be specified separately from high-purity systems. Review ball or globe isolation options against the medium and exact pressure-temperature rating, including startup and cleaning conditions.
For chemical charging or transfer, share the full composition and concentration of the medium. A lined ball valve is a catalogue option to discuss where its liner, seats and operating limits match the duty. A lining material does not by itself establish hygienic or product-contact qualification.
Pneumatic isolation can be reviewed for defined switching duties. Specify the air supply, cycle rate, required failure position and open/closed feedback. Confirm the supplied accessories and control interfaces; automation alone does not validate a production process.
SELECTION / LOOK BEYOND LINE SIZE
Similar connections or materials can conceal different qualification needs. Mark the service as general utility, chemical batch, pure steam, WFI or product-contact before reviewing catalogue options.
Cleaning and sterilisation cycles introduce their own chemicals, temperatures and design requirements. Specify cleanability, drainability and any permitted retained volume rather than relying on the body material alone.
State the required material traceability, surface-finish evidence, seal documentation and inspection records at enquiry stage. Availability must be confirmed for the exact offered model and configuration.
Body, trim, seals and actuation need to work together under your service conditions.
Body alloy, internal geometry, wetted finish, seats and seals all matter. Confirm the complete construction against the project specification; a catalogue alloy option is not evidence of sanitary approval.
Confirm liner and seat compatibility at the actual concentration and temperature, including cleaning media and any vacuum condition. Do not treat a generic lined valve as universally compatible.
Pure-steam, WFI and product-contact service may require dedicated hygienic components and documented validation evidence. The industrial products shown here are not presented as prequalified pharmaceutical assemblies.
Explore these catalogue configurations, compare their specifications and share your operating conditions with our team.

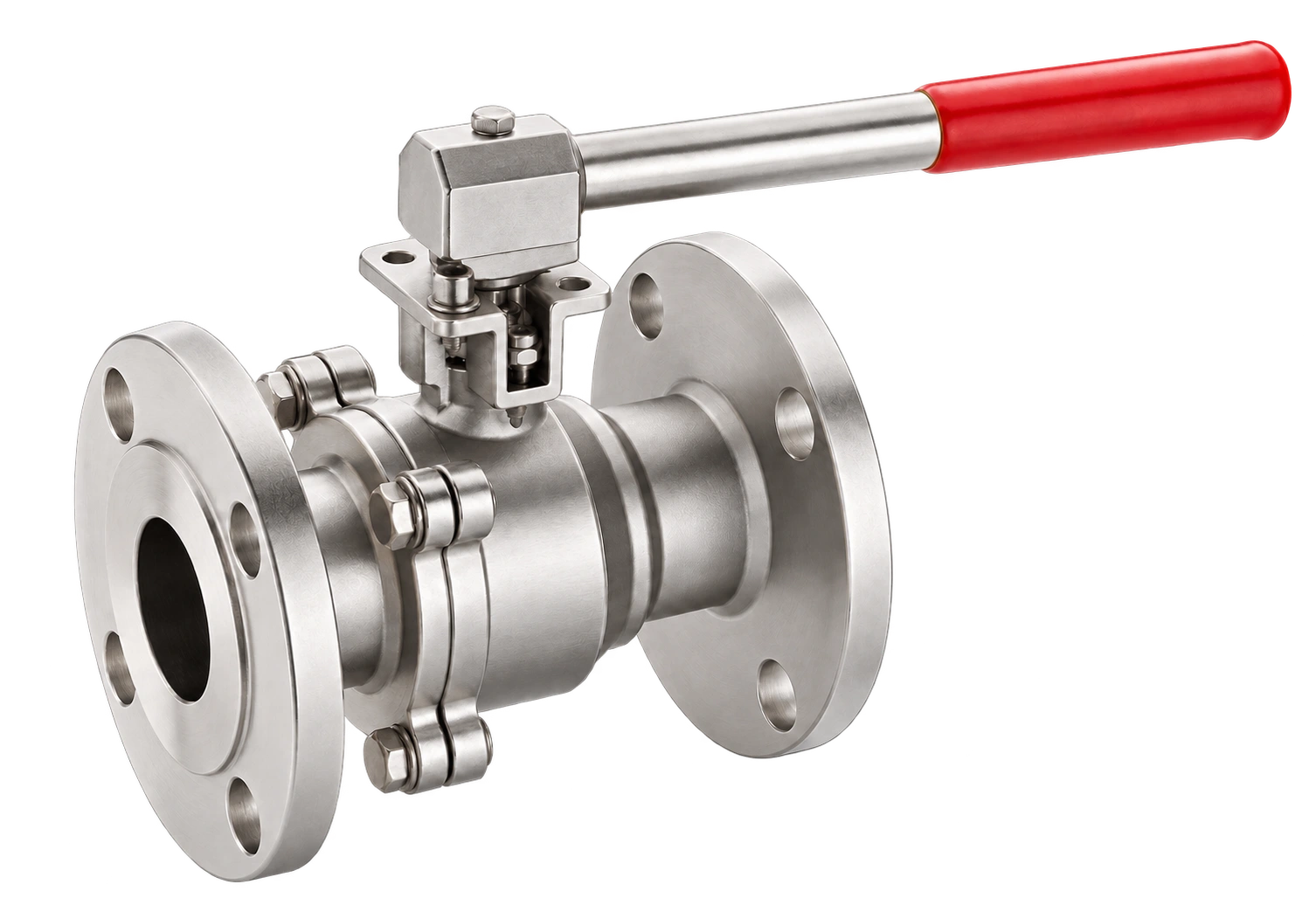

Review general liquid or utility isolation against the specified medium.
Size Range: 15mm to 100mm. Pressure Rating: #150 and # 300.

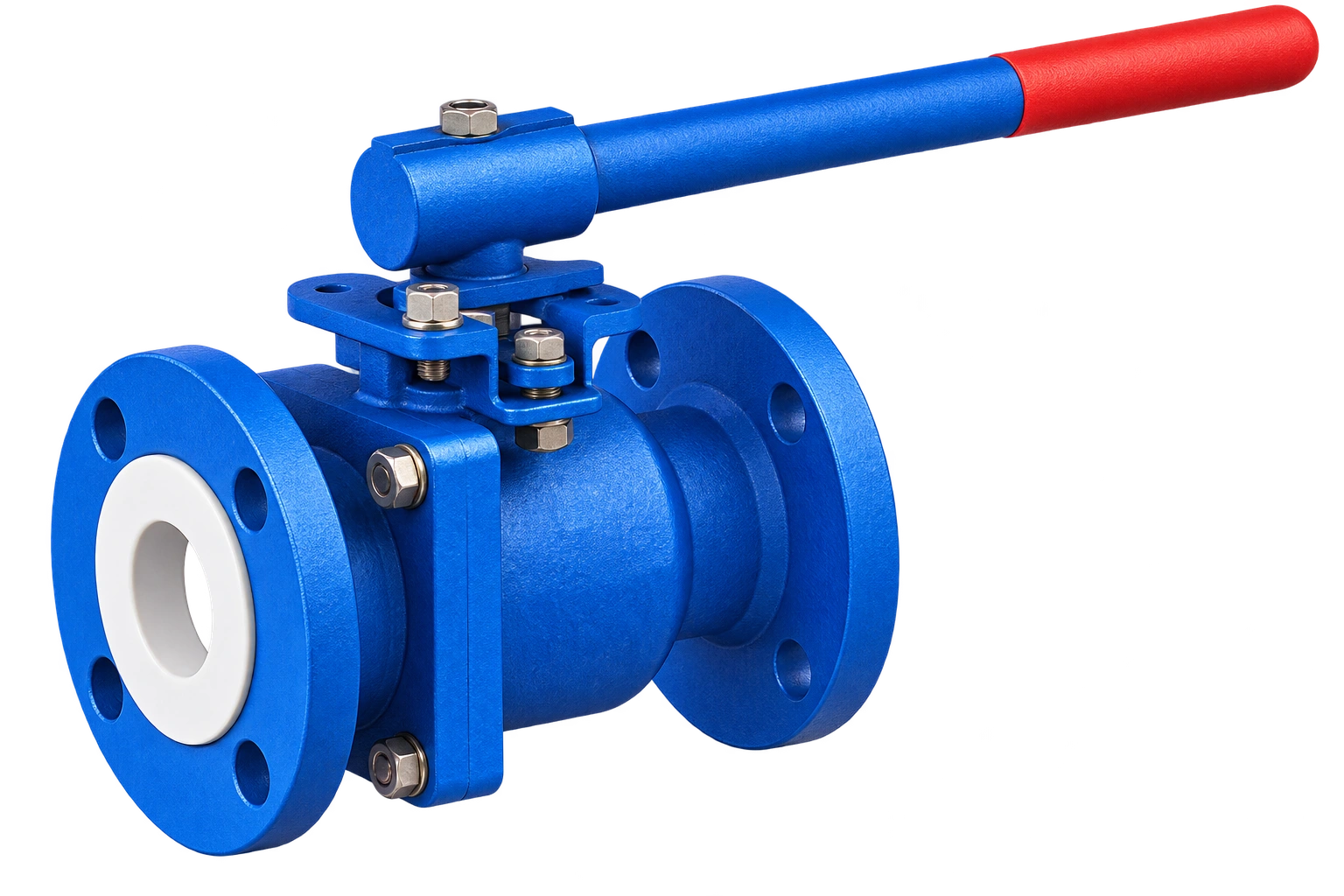

Discuss lined-valve options for a confirmed compatible chemical duty.
Size Range: 25mm to 150mm. Pressure Rating: Class 150.

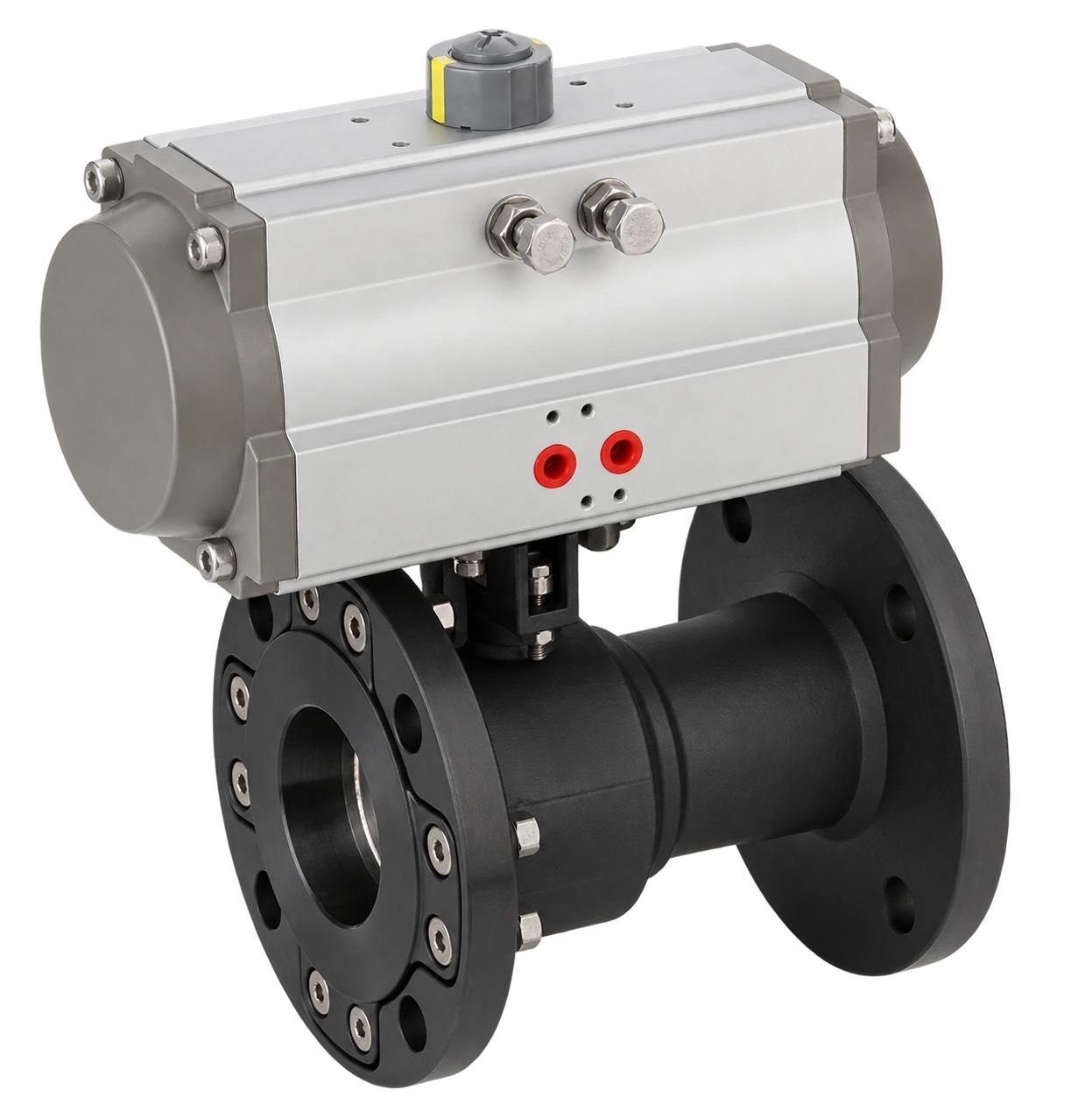

Review automated isolation, operating air and required position feedback.
Size Range: 25mm to 300mm. Pressure Rating: Class 150/ Class 300.

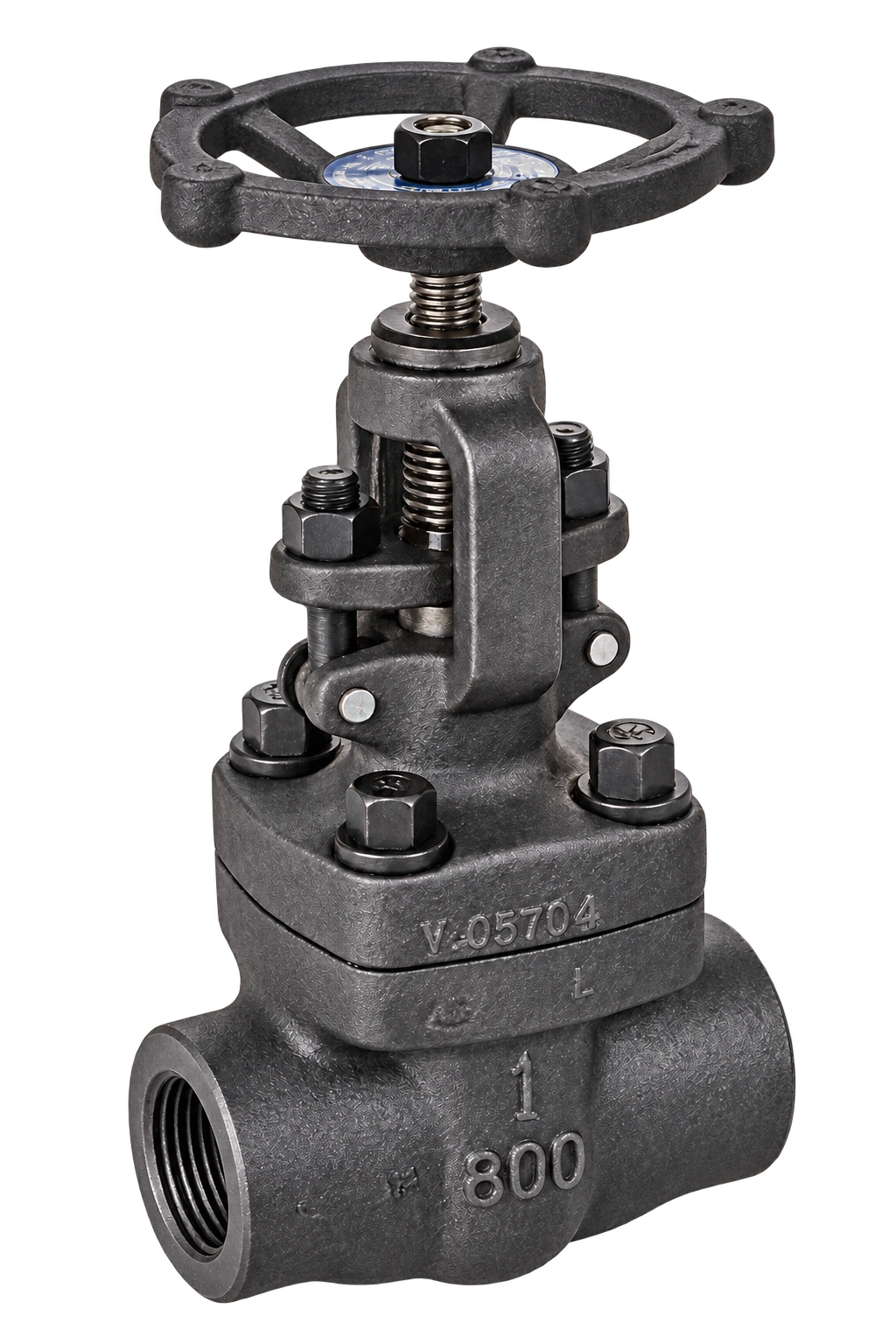

Explore rated general plant steam isolation, with a separate review for high-purity duties.
Size Range: 15mm-50mm. Pressure Rating: #150 to #2500.
Final selection depends on the complete valve configuration, fluid compatibility and operating duty. Project-specific approvals and limits are confirmed with the quotation.
BEFORE YOU SPECIFY / PRACTICAL ANSWERS
Questions worth discussing for your pharmaceutical industries application.
Ask our teamPossibly for a defined general utility or compatible industrial process duty, after application review. Hygienic or aseptic service needs construction and documentation that meet the specific project requirements.
That approval is not established by the supplied catalogue. Send the high-purity specification so the required design, material evidence and qualification can be reviewed before an assembly is offered.
Describe the medium and service boundary, then include the switching sequence, air supply, required failure position and feedback. Add any cleaning cycle and documentation requirements for the exact assembly.
Share the medium, duty, size, connections and operating conditions.
