Piston Valve
Forged and cast steel isolation, regulation, non-return and strainer solutions.
Size Range: 15mm-50mm. Pressure Rating: #150, #150, #800.
PRODUCT / TECHNICAL DETAILS
Specifications.
For this configuration.
| Design Std | ASME B16.34 |
|---|---|
| Size Range | 15mm-50mm. |
| Body | A105/ WCB/ Special Metals. |
| Disc | CF8/ CF8M/ Special Metals. |
| Seat | Graphite. |
| Pressure Rating | #150, #150, #800. |
| End Connection | Screwed End/ Socket Weld End/ Flanged End. |
Spares available on request. Materials, operating limits, connections and automation options depend on the selected configuration. Share your application so the team can confirm the requirements.
Source: supplied Prestige catalogue, PDF page 11.
Read the original catalogue specification text
Source title: Piston Valve
Design Std: ASME B16.34
Size Range: 15mm-50mm.
Body: A105/ WCB/ Special Metals.
Disc: CF8/ CF8M/ Special Metals.
Seat: Graphite.
Pressure Rating: #150, #150, #800.
End Connection: Screwed End/
Socket Weld End/ Flanged End.

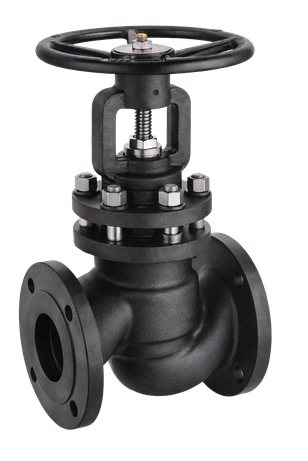

Supplied photographs: Original view 01
